addChartToSlide

This function adds a chart to the specified or the current slide. By default, the chart is 152x89 mm and centered.

Prompts

Add a bar chart showing sales data [[100, 120, 140], [90, 110, 130]] with series "Product A", "Product B" and categories "Q1", "Q2", "Q3" on the current slide
Add a pie chart showing data [[30, 25, 20, 15, 10]] with series "Market Share" and categories "Company A", "Company B", "Company C", "Company D", "Others" on slide 2
Generate chart data for monthly revenue showing steady growth from $50k to $120k in 2024

Function registration

let func = new RegisteredFunction();
func.name = "addChartToSlide";
func.description = "Adds a chart to the slide (152x89mm, centered)";
func.params = [
    "slideNumber (number): slide number to add chart to (optional, defaults to current)",
    "chartType (string): type of chart - bar, barStacked, barStackedPercent, bar3D, barStacked3D, barStackedPercent3D, barStackedPercent3DPerspective, horizontalBar, horizontalBarStacked, horizontalBarStackedPercent, horizontalBar3D, horizontalBarStacked3D, horizontalBarStackedPercent3D, lineNormal, lineStacked, lineStackedPercent, line3D, pie, pie3D, doughnut, scatter, stock, area, areaStacked, areaStackedPercent",
    "data (array): 2D array of numeric data values - all sub-arrays must have same length, number of arrays must match series count",
    "series (array): array of series names - must have same length as data arrays count",
    "categories (array): array of category names - must have same length as each data array",
    "prompt (string): description of what kind of data to generate for the chart (optional)"
];

func.examples = [
    "if you need to add a bar chart showing sales data on slide 2, respond with:\n" +
    "[functionCalling (addChartToSlide)]: {\"slideNumber\": 2, \"chartType\": \"bar3D\", \"data\": [[100, 120, 140], [90, 110, 130]], \"series\": [\"Product A\", \"Product B\"], \"categories\": [\"Q1\", \"Q2\", \"Q3\"]}",
    "if you need to add a pie chart on current slide, respond with:\n" +
    "[functionCalling (addChartToSlide)]: {\"chartType\": \"pie\", \"data\": [[30, 25, 20, 15, 10]], \"series\": [\"Market Share\"], \"categories\": [\"Company A\", \"Company B\", \"Company C\", \"Company D\", \"Others\"]}",
    "if you need to add a line chart with 3 series and 4 data points, respond with:\n" +
    "[functionCalling (addChartToSlide)]: {\"chartType\": \"lineNormal\", \"data\": [[10, 20, 30, 40], [15, 25, 35, 45], [12, 22, 32, 42]], \"series\": [\"Series 1\", \"Series 2\", \"Series 3\"], \"categories\": [\"Jan\", \"Feb\", \"Mar\", \"Apr\"]}",
    "if you need AI to generate chart data, respond with:\n" +
    "[functionCalling (addChartToSlide)]: {\"slideNumber\": 3, \"chartType\": \"lineNormal\", \"prompt\": \"Create monthly revenue data for 2024 showing steady growth from $50k to $120k\"}"
];

Parameters

Name	Type	Example	Description
slideNumber	number	2	The slide number where the chart will be added. If omitted, the chart is added to the current slide.
chartType	string	"bar3D"	The chart type can be "bar", "barStacked", "barStackedPercent", "bar3D", "barStacked3D", "barStackedPercent3D", "barStackedPercent3DPerspective", "horizontalBar", "horizontalBarStacked", "horizontalBarStackedPercent", "horizontalBar3D", "horizontalBarStacked3D", "horizontalBarStackedPercent3D", "lineNormal", "lineStacked", "lineStackedPercent", "line3D", "pie", "pie3D", "doughnut", "scatter", "stock", "area", "areaStacked", "areaStackedPercent".
data	array	[[10, 20, 30, 40], [15, 25, 35, 45], [12, 22, 32, 42]]	A two-dimensional array of numeric data values. Each sub-array must have the same length, and the number of sub-arrays must match the series count.
series	array	["Series 1", "Series 2", "Series 3"]	An array of series names, which must have the same length as the number of data arrays.
categories	array	["Jan", "Feb", "Mar", "Apr"]	An array of category names, which must have the same length as each data array.
prompt	string	"Create monthly revenue data for 2024 showing steady growth from $50k to $120k"	The description of the data to generate for the chart.

Function execution

func.call = async function (params) {
    Asc.scope.params = params;

    if (params.prompt && !params.data) {
        let requestEngine = AI.Request.create(AI.ActionType.Chat);
        if (!requestEngine) return;

        let isSendedEndLongAction = false;

        async function checkEndAction() {
            if (!isSendedEndLongAction) {
                let actionName = "AI" + (requestEngine.modelUI && requestEngine.modelUI.name ? " (" + requestEngine.modelUI.name + ")" : " (Chart Generation)");
                await Asc.Editor.callMethod("EndAction", ["Block", actionName]);
                isSendedEndLongAction = true;
            }
        }

        let actionName = "AI" + (requestEngine.modelUI && requestEngine.modelUI.name ? " (" + requestEngine.modelUI.name + ")" : " (Chart Generation)");
        await Asc.Editor.callMethod("StartAction", ["Block", actionName]);
        await Asc.Editor.callMethod("StartAction", ["GroupActions"]);

        try {
            let chartPrompt = "Generate chart data for the following request: " + params.prompt + "\n\nReturn ONLY a JSON object in this exact format (no other text):\n" + "{\n" + "  \"data\": [[number, number, ...], [number, number, ...]],\n" + "  \"series\": [\"Series1\", \"Series2\", ...],\n" + "  \"categories\": [\"Category1\", \"Category2\", ...]\n" + "}\n\n" + "IMPORTANT RULES:\n" + "1. The number of arrays in 'data' MUST equal the number of items in 'series'\n" + "2. ALL arrays in 'data' MUST have exactly the same length\n" + "3. The number of items in 'categories' MUST equal the length of each data array\n" + "Example: if data=[[10,20,30],[40,50,60]], then series must have 2 names and categories must have 3 names";

            let generatedData = await requestEngine.chatRequest(chartPrompt, false);

            await checkEndAction();

            try {
                let parsedData = JSON.parse(generatedData);
                Asc.scope.params.data = parsedData.data;
                Asc.scope.params.series = parsedData.series;
                Asc.scope.params.categories = parsedData.categories;

                let dataLength = Asc.scope.params.data.length;
                let seriesLength = Asc.scope.params.series.length;
                let pointsLength = Asc.scope.params.data[0] ? Asc.scope.params.data[0].length : 0;
                let categoriesLength = Asc.scope.params.categories.length;

                for (let i = 1; i < Asc.scope.params.data.length; i++) {
                    if (Asc.scope.params.data[i].length !== pointsLength) {
                        while (Asc.scope.params.data[i].length < pointsLength) {
                            Asc.scope.params.data[i].push(0);
                        }
                        Asc.scope.params.data[i] = Asc.scope.params.data[i].slice(0, pointsLength);
                    }
                }

                if (dataLength !== seriesLength) {
                    while (Asc.scope.params.series.length < dataLength) {
                        Asc.scope.params.series.push("Series " + (Asc.scope.params.series.length + 1));
                    }
                    Asc.scope.params.series = Asc.scope.params.series.slice(0, dataLength);
                }

                if (pointsLength !== categoriesLength) {
                    while (Asc.scope.params.categories.length < pointsLength) {
                        Asc.scope.params.categories.push("Cat " + (Asc.scope.params.categories.length + 1));
                    }
                    Asc.scope.params.categories = Asc.scope.params.categories.slice(0, pointsLength);
                }
            } catch (e) {
                Asc.scope.params.data = [[100, 120, 140], [90, 110, 130]];
                Asc.scope.params.series = ["Series 1", "Series 2"];
                Asc.scope.params.categories = ["Cat 1", "Cat 2", "Cat 3"];
            }
        } catch (error) {
            await checkEndAction();
            Asc.scope.params.data = [[100, 120, 140], [90, 110, 130]];
            Asc.scope.params.series = ["Series 1", "Series 2"];
            Asc.scope.params.categories = ["Cat 1", "Cat 2", "Cat 3"];
        }

        await Asc.Editor.callMethod("EndAction", ["GroupActions"]);
    }

    await Asc.Editor.callCommand(function () {
        let presentation = Api.GetPresentation();
        let slide;

        if (Asc.scope.params.slideNumber) {
            slide = presentation.GetSlideByIndex(Asc.scope.params.slideNumber - 1);
        }
        else {
            slide = presentation.GetCurrentSlide();
        }

        if (!slide) return;

        let chartType = Asc.scope.params.chartType || "bar3D";
        let data = Asc.scope.params.data || [[100, 120, 140], [90, 110, 130]];
        let series = Asc.scope.params.series || ["Series 1", "Series 2"];
        let categories = Asc.scope.params.categories || ["Category 1", "Category 2", "Category 3"];

        if (!data || data.length === 0 || !data[0] || data[0].length === 0) {
            data = [[100, 120, 140], [90, 110, 130]];
            series = ["Series 1", "Series 2"];
            categories = ["Category 1", "Category 2", "Category 3"];
        }

        if (data.length > 0 && data[0].length > 0) {
            let dataLength = data.length;
            let pointsLength = data[0].length;

            for (let i = 1; i < data.length; i++) {
                if (data[i].length !== pointsLength) {
                    while (data[i].length < pointsLength) {
                        data[i].push(0);
                    }
                    data[i] = data[i].slice(0, pointsLength);
                }
            }

            if (series.length !== dataLength) {
                while (series.length < dataLength) {
                    series.push("Series " + (series.length + 1));
                }
                series = series.slice(0, dataLength);
            }

            if (categories.length !== pointsLength) {
                while (categories.length < pointsLength) {
                    categories.push("Category " + (categories.length + 1));
                }
                categories = categories.slice(0, pointsLength);
            }
        }

        let slideWidth = presentation.GetWidth();
        let slideHeight = presentation.GetHeight();
        let width = 5472000;
        let height = 3204000;

        let x = (slideWidth - width) / 2;
        let y = (slideHeight - height) / 2;

        let chart = Api.CreateChart(chartType, data, series, categories, width, height, 24);

        if (chart) {
            chart.SetPosition(x, y);
            slide.AddObject(chart);
        }
    });
};

return func;

Methods used: GetPresentation, GetCurrentSlide, GetSlideByIndex, GetWidth, GetHeight, CreateChart, SetPosition, AddObject, EndAction, StartAction, Asc.scope object

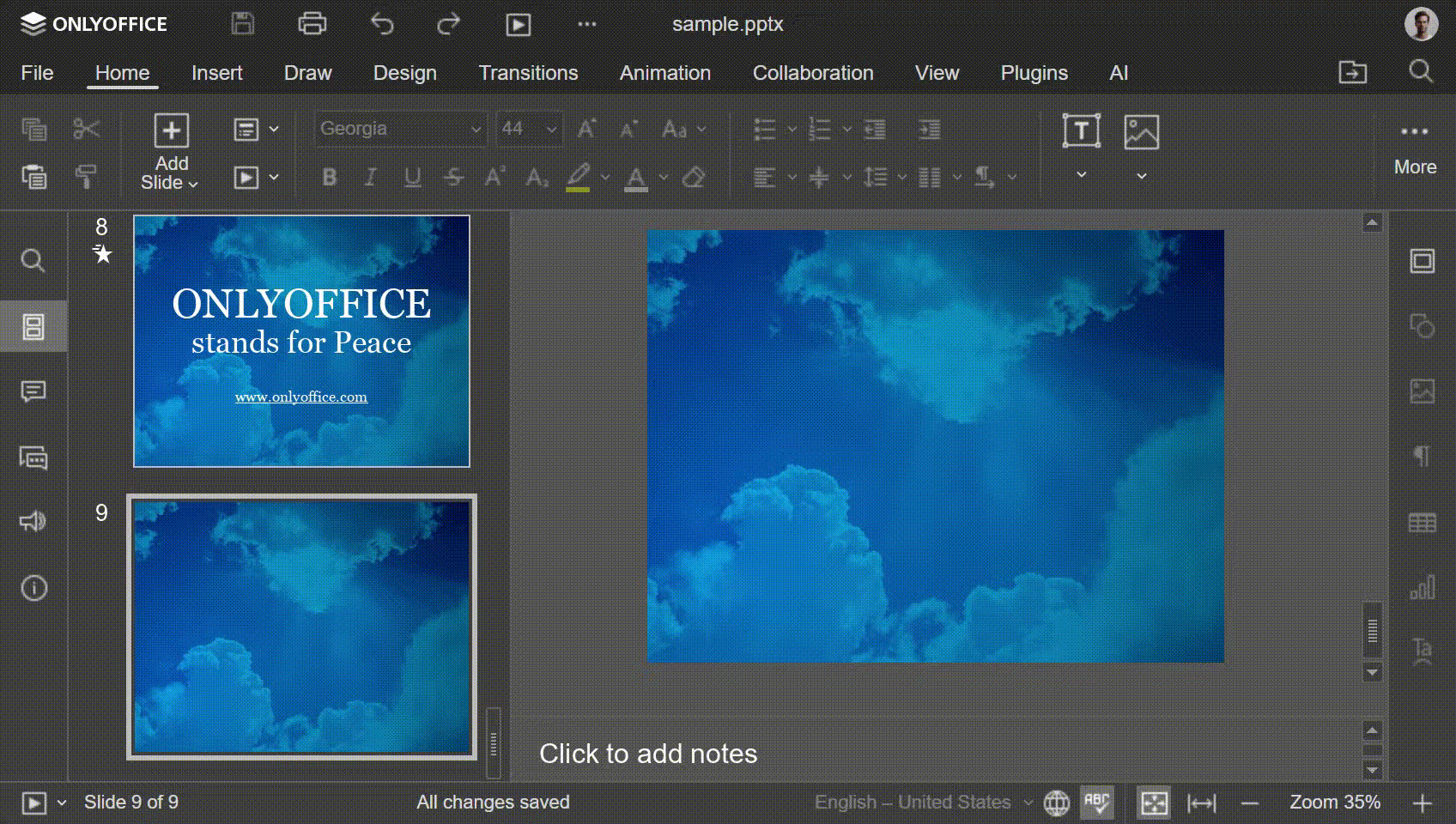

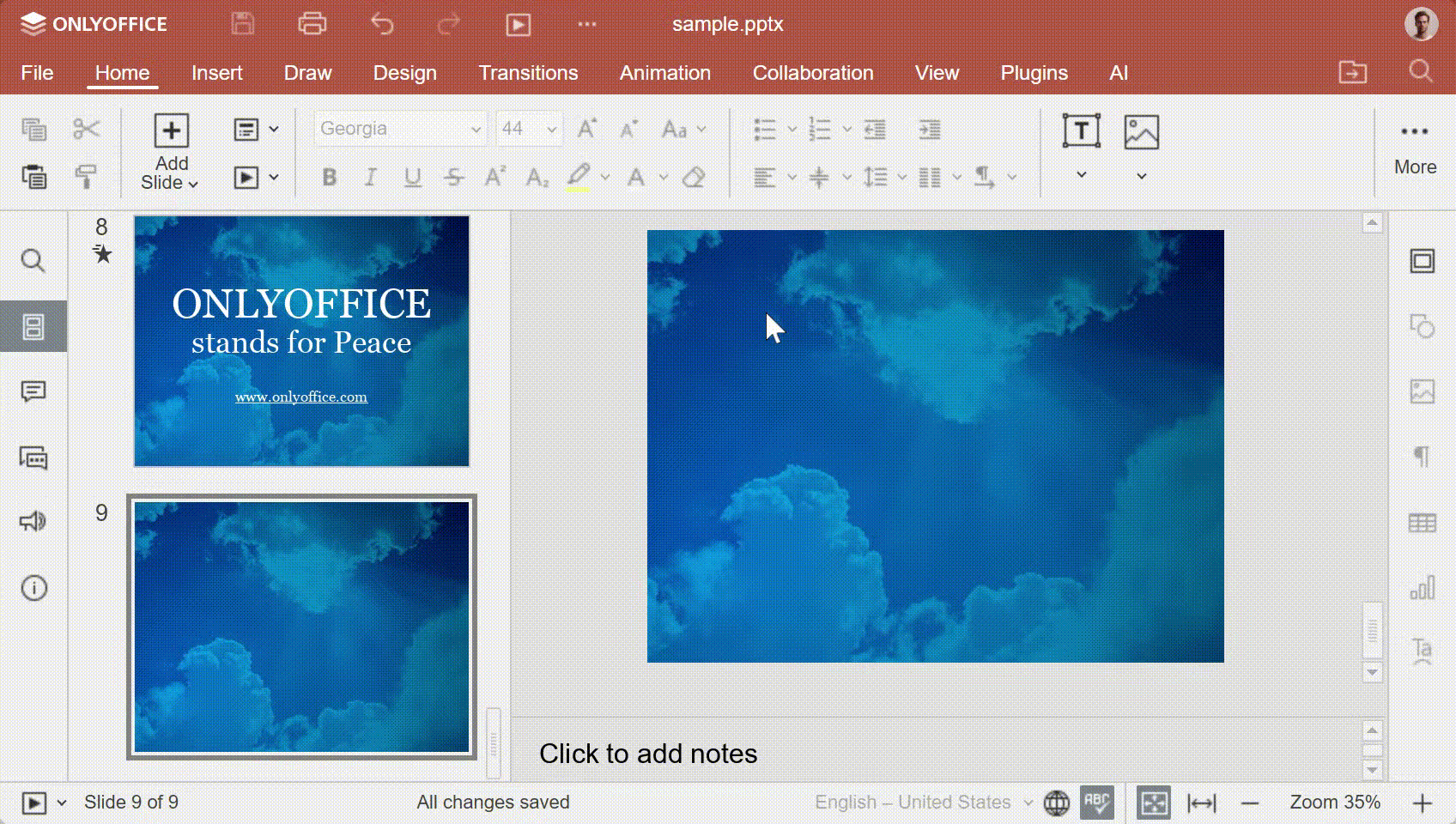

Result
