setAutoFilter
This function applies or modifies an AutoFilter on a given cell range or the active selection. Supports filtering by column index or name, comparison operators, multiple values, colors, and advanced filter operators.
Prompts
- Apply autofilter to range A1:D10
- Apply filter to the selected cells
- Filter column 4 for values greater than 10
- Show rows where Column1 is greater than 17
- Show top 3 items in column 4
- Show rows where column 4 is greater than 15 or less than 5
Function registration
let func = new RegisteredFunction();
func.name = "setAutoFilter";
func.params = [
"range (string, optional): cell range to apply autofilter (e.g., 'A1:D10'). If omitted, uses active/selected range",
"field (number, optional): field number for filtering (starting from 1, left-most field)",
"fieldName (string, optional): column name/header for filtering (e.g., 'Name', 'Age'). Will automatically find the column number",
"criteria1 (string|array|object, optional): filter criteria - string for operators (e.g., '>10'), array for multiple values (e.g., [1,2,3]), ApiColor object for color filters, or dynamic filter constant",
"operator (string, optional): filter operator - 'xlAnd', 'xlOr', 'xlFilterValues', 'xlTop10Items', 'xlTop10Percent', 'xlBottom10Items', 'xlBottom10Percent', 'xlFilterCellColor', 'xlFilterFontColor', 'xlFilterDynamic'",
"criteria2 (string, optional): second criteria for compound filters (used with xlAnd/xlOr operators)",
"visibleDropDown (boolean, optional): show/hide filter dropdown arrow (default: true)"
];
func.examples = [
"If you need to apply autofilter to range A1:D10, respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\"}",
"To apply autofilter to active/selected range, respond:" +
"[functionCalling (setAutoFilter)]: {}",
"To filter column 1 for values greater than 10, respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"field\": 1, \"criteria1\": \">10\"}",
"To filter by column name 'Name' for specific values, respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"fieldName\": \"Name\", \"criteria1\": [\"John\", \"Jane\"], \"operator\": \"xlFilterValues\"}",
"To filter by column header 'Age' for values greater than 18, respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"fieldName\": \"Age\", \"criteria1\": \">18\"}",
"To filter column 2 for specific values [2,5,8], respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"field\": 2, \"criteria1\": [2,5,8], \"operator\": \"xlFilterValues\"}",
"To filter column 1 for top 10 items, respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"field\": 1, \"criteria1\": \"10\", \"operator\": \"xlTop10Items\"}",
"To create compound filter (>5 OR <2), respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"field\": 1, \"criteria1\": \">5\", \"operator\": \"xlOr\", \"criteria2\": \"<2\"}",
"To filter by cell background color (yellow), respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"field\": 1, \"criteria1\": {\"r\": 255, \"g\": 255, \"b\": 0}, \"operator\": \"xlFilterCellColor\"}",
"To filter by font color (red), respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"field\": 1, \"criteria1\": {\"r\": 255, \"g\": 0, \"b\": 0}, \"operator\": \"xlFilterFontColor\"}",
"To filter active range for values greater than 5, respond:" +
"[functionCalling (setAutoFilter)]: {\"field\": 1, \"criteria1\": \">5\"}",
"To filter active range by column name 'Price' for values less than 100, respond:" +
"[functionCalling (setAutoFilter)]: {\"fieldName\": \"Price\", \"criteria1\": \"<100\"}",
"When user requests filtering by column name with comparison operators (e.g., 'filter more than X by column Y', 'show values greater than Z in field W'), respond:" +
"[functionCalling (setAutoFilter)]: {\"fieldName\": \"[extracted_column_name]\", \"criteria1\": \"[operator][value]\"}",
"For filtering by column names with numeric criteria (e.g., 'values > 10', 'less than 50', 'equal to 25'), respond:" +
"[functionCalling (setAutoFilter)]: {\"fieldName\": \"[column_name_from_request]\", \"criteria1\": \"[comparison_operator][numeric_value]\"}",
"To filter by any column header with comparison operators mentioned in user request, respond:" +
"[functionCalling (setAutoFilter)]: {\"fieldName\": \"[header_name_from_user]\", \"criteria1\": \"[operator_and_value_from_request]\"}",
"When user requests filtering with 'more than', 'greater than', 'above' use '>' operator:" +
"[functionCalling (setAutoFilter)]: {\"fieldName\": \"[column_name]\", \"criteria1\": \">[value]\"}",
"When user requests filtering with 'less than', 'below', 'under' use '<' operator:" +
"[functionCalling (setAutoFilter)]: {\"fieldName\": \"[column_name]\", \"criteria1\": \"<[value]\"}",
"When user requests filtering with 'equal to', 'equals', 'exactly' use '=' operator:" +
"[functionCalling (setAutoFilter)]: {\"fieldName\": \"[column_name]\", \"criteria1\": \"=[value]\"}",
"To remove autofilter from range, respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"field\": null}",
"To clear filter from specific column, respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D10\", \"field\": 1, \"criteria1\": null}",
"To filter range A1:D8 by yellow color, respond:" +
"[functionCalling (setAutoFilter)]: {\"range\": \"A1:D8\", \"fieldName\": \"color\", \"criteria1\": {\"r\": 255, \"g\": 255, \"b\": 0}, \"operator\": \"xlFilterCellColor\"}"
];
Parameters
| Name | Type | Example | Description |
|---|---|---|---|
| range | string | "A1:D10" | The cell range to apply the autofilter. If omitted, the active or selected range is used. |
| field | number | 1 | The field number used for filtering, where numbering starts at 1 from the left-most column. |
| fieldName | string | "Price" | The column name/header used for filtering (e.g., "Name", "Age"). The function automatically maps it to the correct column index. |
| criteria1 | string | array | object | ">18" | The filter criteria. Can be: string for operators (e.g., ">10"), array for multiple values (e.g., [1,2,3]), ApiColor object for color filters, or dynamic filter constant. |
| operator | string | "xlFilterValues" | The filter operator. Can be: "xlAnd", "xlOr", "xlFilterValues", "xlTop10Items", "xlTop10Percent", "xlBottom10Items", "xlBottom10Percent", "xlFilterCellColor", "xlFilterFontColor", "xlFilterDynamic". |
| criteria2 | string | "<2" | The second filter criteria, used with "xlAnd" or "xlOr" operators for compound filters. |
| visibleDropDown | boolean | true | Specifies whether to show the filter dropdown arrow. The default value is "true". |
Function execution
func.call = async function(params) {
Asc.scope.range = params.range;
Asc.scope.field = params.field;
Asc.scope.fieldName = params.fieldName;
Asc.scope.criteria1 = params.criteria1;
Asc.scope.operator = params.operator;
Asc.scope.criteria2 = params.criteria2;
Asc.scope.visibleDropDown = params.visibleDropDown;
if (Asc.scope.fieldName && !Asc.scope.field) {
let insertRes = await Asc.Editor.callCommand(function(){
let ws = Api.GetActiveSheet();
let _range;
if (!Asc.scope.range) {
_range = Api.GetSelection();
} else {
_range = ws.GetRange(Asc.scope.range);
}
return _range.GetValue2();
});
let csv = insertRes.map(function(item){
return item.map(function(value) {
if (value == null) return '';
const str = String(value);
if (str.includes(',') || str.includes('\n') || str.includes('\r') || str.includes('"')) {
return '"' + str.replace(/"/g, '""') + '"';
}
return str;
}).join(',');
}).join('\n');
let argPromt = "Find column index for header '" + Asc.scope.fieldName + "' in the following CSV data.\n\n" +
"IMPORTANT RULES:\n" +
"1. Return ONLY a single number (column index starting from 1). No text, no explanations, no additional characters.\n" +
"2. Find EXACT match first. If exact match exists, return its index.\n" +
"3. If no exact match, then look for partial matches.\n" +
"4. Case-insensitive comparison allowed.\n" +
"5. Data is CSV format (comma-separated). Look ONLY at the first row (header row).\n" +
"6. Count positions carefully: each comma marks a column boundary.\n" +
"7. Example: if searching for 'test2' and headers are 'test1,test2,test', return 2 (not 1 or 3).\n" +
"8. If the header is in the 3rd column, return only: 3\n\n" +
"CSV data:\n" + csv;
let requestEngine = AI.Request.create(AI.ActionType.Chat);
if (!requestEngine)
return;
let isSendedEndLongAction = false;
async function checkEndAction() {
if (!isSendedEndLongAction) {
await Asc.Editor.callMethod("EndAction", ["Block", "AI (" + requestEngine.modelUI.name + ")"]);
isSendedEndLongAction = true
}
}
await Asc.Editor.callMethod("StartAction", ["Block", "AI (" + requestEngine.modelUI.name + ")"]);
await Asc.Editor.callMethod("StartAction", ["GroupActions"]);
let result = await requestEngine.chatRequest(argPromt, false, async function(data) {
if (!data)
return;
await checkEndAction();
});
await checkEndAction();
await Asc.Editor.callMethod("EndAction", ["GroupActions"]);
Asc.scope.field = result;
}
await Asc.Editor.callCommand(function(){
let ws = Api.GetActiveSheet();
let range;
if (!Asc.scope.range) {
range = Api.GetSelection();
} else {
range = ws.GetRange(Asc.scope.range);
}
if (!range) {
return;
}
let field = Asc.scope.field;
if (!field) {
field = 1;
}
let criteria1 = Asc.scope.criteria1;
if (Asc.scope.operator === "xlFilterCellColor" || Asc.scope.operator === "xlFilterFontColor") {
if (criteria1 && typeof criteria1 === 'object' && criteria1.r !== undefined && criteria1.g !== undefined && criteria1.b !== undefined) {
criteria1 = Api.CreateColorFromRGB(criteria1.r, criteria1.g, criteria1.b);
}
}
range.SetAutoFilter(
field,
criteria1,
Asc.scope.operator,
Asc.scope.criteria2,
Asc.scope.visibleDropDown
);
});
};
return func;
Methods used: GetActiveSheet, GetSelection, GetRange, GetValue2, CreateColorFromRGB, SetAutoFilter, EndAction, StartAction, Asc.scope object

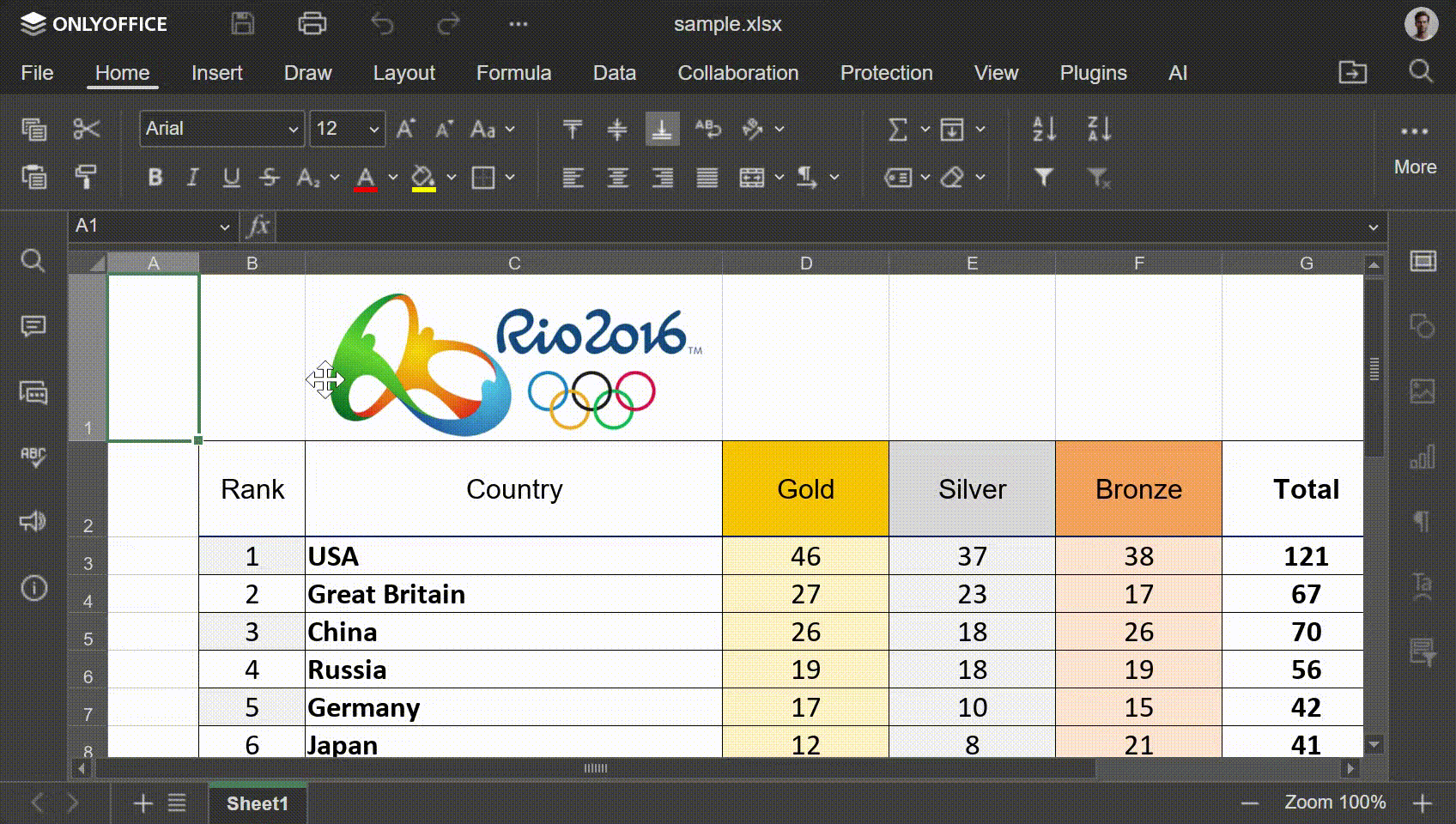

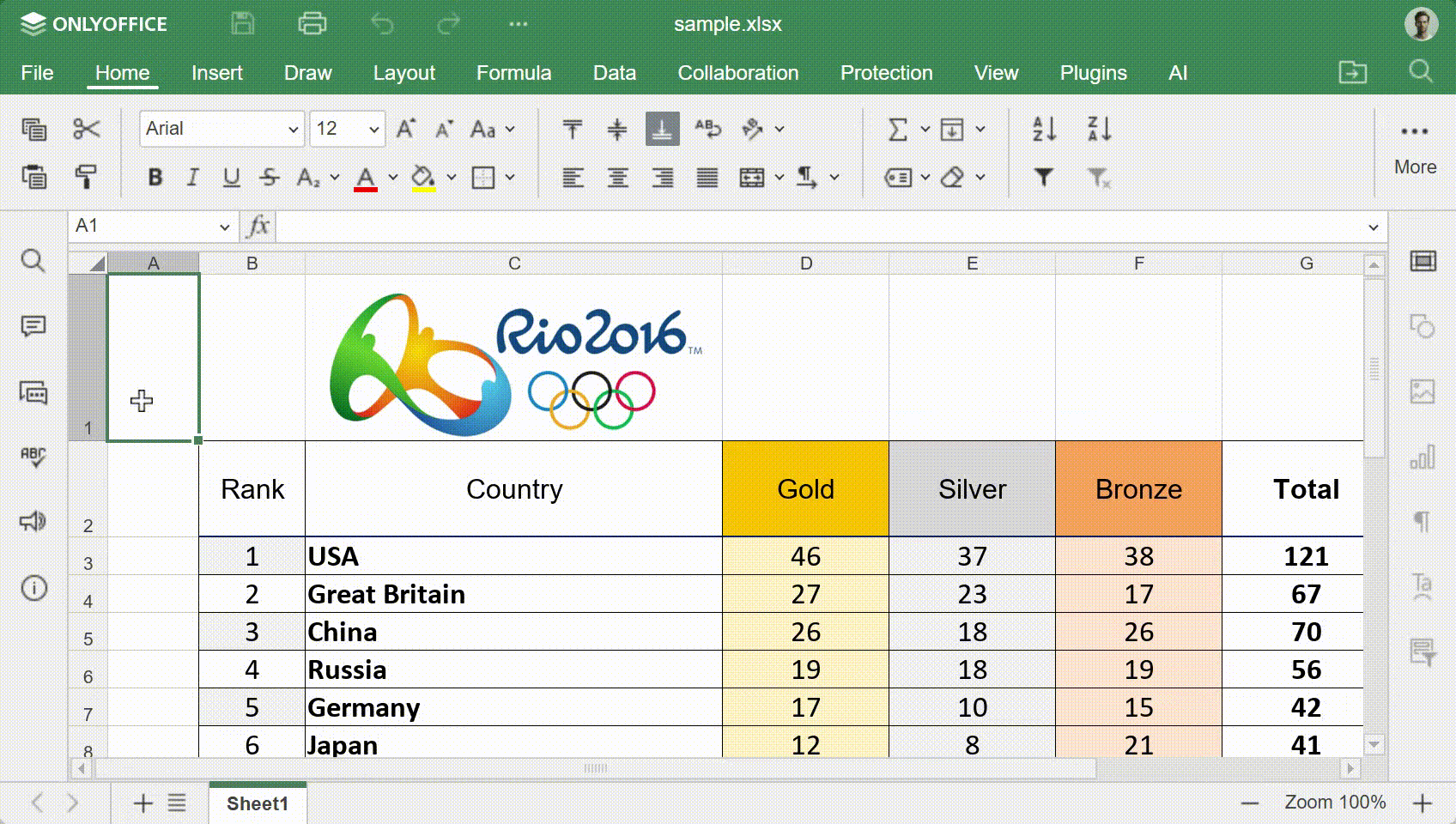

Result
