setSort

This function sorts a given range (or the active/selected range) by up to three columns, using either cell references, column indices, named ranges, or column headers. Supports ascending/descending order and optional header detection.

Prompts

Sort cells A1:D10 by the first column ascending
Sort the table by Column1 ascending
Sort by the second column descending
Sort A1:D10 by Column1 ascending, then by Column2 descending
Sort the selected range by the first column

Function registration

let func = new RegisteredFunction();
func.name = "setSort";
func.params = [
    "range (string, optional): cell range to sort (e.g., 'A1:D10'). If omitted, uses active/selected range",
    "key1 (string|ApiRange|number, optional): first sort field - range, named range reference, or column index within range (1-based)",
    "key1Name (string, optional): first sort field column name/header (e.g., 'Name', 'Age'). Will automatically find the column number",
    "sortOrder1 (string, optional): sort order for key1 - 'xlAscending' or 'xlDescending' (default: 'xlAscending')",
    "key2 (string|ApiRange|number, optional): second sort field - range, named range reference, or column index within range (1-based)",
    "key2Name (string, optional): second sort field column name/header (e.g., 'Name', 'Age'). Will automatically find the column number",
    "sortOrder2 (string, optional): sort order for key2 - 'xlAscending' or 'xlDescending'",
    "key3 (string|ApiRange|number, optional): third sort field - range, named range reference, or column index within range (1-based)",
    "key3Name (string, optional): third sort field column name/header (e.g., 'Name', 'Age'). Will automatically find the column number",
    "sortOrder3 (string, optional): sort order for key3 - 'xlAscending' or 'xlDescending'",
    "header (string, optional): specifies if first row contains headers - 'xlYes' or 'xlNo' (default: 'xlNo')"
];

func.examples = [
    "To sort range A1:D10 by first column in ascending order, respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1\": \"A1\", \"sortOrder1\": \"xlAscending\"}",

    "To sort active range by first column with headers, respond:" +
    "[functionCalling (setSort)]: {\"key1\": \"A1\", \"header\": \"xlYes\"}",

    "To sort range by multiple columns (first ascending, second descending), respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1\": \"A1\", \"sortOrder1\": \"xlAscending\", \"key2\": \"B1\", \"sortOrder2\": \"xlDescending\"}",

    "To sort range by three columns, respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1\": \"A1\", \"sortOrder1\": \"xlAscending\", \"key2\": \"B1\", \"sortOrder2\": \"xlDescending\", \"key3\": \"C1\", \"sortOrder3\": \"xlAscending\"}",

    "To sort range by rows instead of columns, respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1\": \"A1\", \"orientation\": \"xlSortRows\"}",

    "To sort range with headers by second column descending, respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1\": \"B1\", \"sortOrder1\": \"xlDescending\", \"header\": \"xlYes\"}",

    "To sort active range by named range key, respond:" +
    "[functionCalling (setSort)]: {\"key1\": \"MyRange\", \"sortOrder1\": \"xlAscending\"}",

    "To sort range by column index (1st column), respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1\": 1, \"sortOrder1\": \"xlAscending\"}",

    "To sort range by multiple column indices (1st ascending, 3rd descending), respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1\": 1, \"sortOrder1\": \"xlAscending\", \"key2\": 3, \"sortOrder2\": \"xlDescending\"}",

    "To sort active range by second column index with headers, respond:" +
    "[functionCalling (setSort)]: {\"key1\": 2, \"sortOrder1\": \"xlAscending\", \"header\": \"xlYes\"}",

    "To sort by column name 'Name' in ascending order, respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1Name\": \"Name\", \"sortOrder1\": \"xlAscending\", \"header\": \"xlYes\"}",

    "To sort by multiple column names (Name ascending, Age descending), respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1Name\": \"Name\", \"sortOrder1\": \"xlAscending\", \"key2Name\": \"Age\", \"sortOrder2\": \"xlDescending\", \"header\": \"xlYes\"}",

    "To sort active range by column name 'Price' descending with headers, respond:" +
    "[functionCalling (setSort)]: {\"key1Name\": \"Price\", \"sortOrder1\": \"xlDescending\", \"header\": \"xlYes\"}",

    "To sort by three column names, respond:" +
    "[functionCalling (setSort)]: {\"range\": \"A1:D10\", \"key1Name\": \"Category\", \"sortOrder1\": \"xlAscending\", \"key2Name\": \"Price\", \"sortOrder2\": \"xlDescending\", \"key3Name\": \"Date\", \"sortOrder3\": \"xlAscending\", \"header\": \"xlYes\"}",

    "When user requests sorting by column name (e.g., 'sort by column X', 'order by field Y'), respond:" +
    "[functionCalling (setSort)]: {\"key1Name\": \"[extracted_column_name]\", \"sortOrder1\": \"xlAscending\", \"header\": \"xlYes\"}",

    "For sorting by specific column names in any case/format, respond:" +
    "[functionCalling (setSort)]: {\"key1Name\": \"[column_name_from_request]\", \"header\": \"xlYes\"}",

    "To sort data by any column header mentioned in user request, respond:" +
    "[functionCalling (setSort)]: {\"key1Name\": \"[header_name_from_user]\", \"sortOrder1\": \"[xlAscending_or_xlDescending]\", \"header\": \"xlYes\"}"
];

Parameters

Name	Type	Example	Description
range	string	"A1:D10"	The cell range to sort. If omitted, the active or selected range is used.
key1	string \| ApiRange \| number	"A1"	The first sort field can be specified as a range, a named range reference, or a column index within the range (1-based).
key1Name	string	"Name"	The column name or header of the first sort field, which will be automatically resolved to the corresponding column number.
sortOrder1	string	"xlAscending"	The sort order for the first sort field can be "xlAscending" or "xlDescending". The default value is "xlAscending".
key2	string \| ApiRange \| number	"C3"	The second sort field can be specified as a range, a named range reference, or a column index within the range (1-based).
key2Name	string	"Age"	The column name or header of the second sort field, which will be automatically resolved to the corresponding column number.
sortOrder2	string	"xlDescending"	The sort order for the second sort field can be "xlAscending" or "xlDescending". The default value is "xlAscending".
key3	string \| ApiRange \| number	"D5"	The third sort field can be specified as a range, a named range reference, or a column index within the range (1-based).
key3Name	string	"Country"	The column name or header of the third sort field, which will be automatically resolved to the corresponding column number.
sortOrder3	string	"xlDescending"	The sort order for the third sort field can be "xlAscending" or "xlDescending". The default value is "xlAscending".
header	string	"xlNo"	Specifies whether the first row contains headers: "xlYes" or "xlNo". The default value is "xlNo".

Function execution

func.call = async function(params) {
    Asc.scope.range = params.range;
    Asc.scope.key1 = params.key1;
    Asc.scope.key1Name = params.key1Name;
    Asc.scope.sortOrder1 = params.sortOrder1 || "xlAscending";
    Asc.scope.key2 = params.key2;
    Asc.scope.key2Name = params.key2Name;
    Asc.scope.sortOrder2 = params.sortOrder2;
    Asc.scope.key3 = params.key3;
    Asc.scope.key3Name = params.key3Name;
    Asc.scope.sortOrder3 = params.sortOrder3;
    Asc.scope.header = params.header || "xlNo";

    async function findColumnByName(fieldName) {
        if (!fieldName) return null;

        let insertRes = await Asc.Editor.callCommand(function(){
            let ws = Api.GetActiveSheet();
            let _range;

            if (!Asc.scope.range) {
                _range = Api.GetSelection();
            } else {
                _range = ws.GetRange(Asc.scope.range);
            }

            return _range.GetValue2();
        });

        let csv = insertRes.map(function(item){
            return item.map(function(value) {
                if (value == null) return '';
                const str = String(value);
                if (str.includes(',') || str.includes('\n') || str.includes('\r') || str.includes('"')) {
                    return '"' + str.replace(/"/g, '""') + '"';
                }
                return str;
            }).join(',');
        }).join('\n');

        let argPromt = "Find column index for header '" + fieldName + "' in the following CSV data.\n\n" +
        "IMPORTANT RULES:\n" +
        "1. Return ONLY a single number (column index starting from 1). No text, no explanations, no additional characters.\n" +
        "2. Find EXACT match first. If exact match exists, return its index.\n" +
        "3. If no exact match, then look for partial matches.\n" +
        "4. Case-insensitive comparison allowed.\n" +
        "5. Data is CSV format (comma-separated). Look ONLY at the first row (header row).\n" +
        "6. Count positions carefully: each comma marks a column boundary.\n" +
        "7. Example: if searching for 'test2' and headers are 'test1,test2,test', return 2 (not 1 or 3).\n" +
        "8. If the header is in the 3rd column, return only: 3\n\n" +
        "CSV data:\n" + csv;

        let requestEngine = AI.Request.create(AI.ActionType.Chat);
        if (!requestEngine)
            return null;

        let isSendedEndLongAction = false;
        async function checkEndAction() {
            if (!isSendedEndLongAction) {
                await Asc.Editor.callMethod("EndAction", ["Block", "AI (" + requestEngine.modelUI.name + ")"]);
                isSendedEndLongAction = true
            }
        }

        await Asc.Editor.callMethod("StartAction", ["Block", "AI (" + requestEngine.modelUI.name + ")"]);
        await Asc.Editor.callMethod("StartAction", ["GroupActions"]);

        let result = await requestEngine.chatRequest(argPromt, false, async function(data) {
            if (!data)
                return;
            await checkEndAction();
        });

        await checkEndAction();
        await Asc.Editor.callMethod("EndAction", ["GroupActions"]);
        return result - 0;
    }

    if (Asc.scope.key1Name && !Asc.scope.key1) {
        Asc.scope.key1 = await findColumnByName(Asc.scope.key1Name);
    }
    if (Asc.scope.key2Name && !Asc.scope.key2) {
        Asc.scope.key2 = await findColumnByName(Asc.scope.key2Name);
    }
    if (Asc.scope.key3Name && !Asc.scope.key3) {
        Asc.scope.key3 = await findColumnByName(Asc.scope.key3Name);
    }

    await Asc.Editor.callCommand(function(){
        let ws = Api.GetActiveSheet();
        let range;

        if (!Asc.scope.range) {
            range = Api.GetSelection();
        } else {
            range = ws.GetRange(Asc.scope.range);
        }

        if (!range) {
            return;
        }

        if (Asc.scope.header === "xlYes") {
            range.SetOffset(1, 0);
        }

        let key1 = null, key2 = null, key3 = null;

        function adjustSortKey(keyValue) {
            if (!keyValue) return null;

            if (typeof keyValue === 'number') {
                return ws.GetCells(range.GetRow(), range.GetCol() + keyValue - 1);
            } else if (typeof keyValue === 'string') {
                try {
                    let keyRange = ws.GetRange(keyValue);
                    return keyRange || keyValue;
                } catch {
                    return keyValue;
                }
            } else {
                return keyValue;
            }
        }

        key1 = adjustSortKey(Asc.scope.key1);
        key2 = adjustSortKey(Asc.scope.key2);
        key3 = adjustSortKey(Asc.scope.key3);

        range.SetSort(
            key1,
            Asc.scope.sortOrder1,
            key2,
            Asc.scope.sortOrder2,
            key3,
            Asc.scope.sortOrder3,
            Asc.scope.header
        );
    });
};

return func;

Methods used: GetActiveSheet, GetSelection, GetRange, GetValue2, SetOffset, GetCells, GetRow, GetCol, SetSort, EndAction, StartAction, Asc.scope object

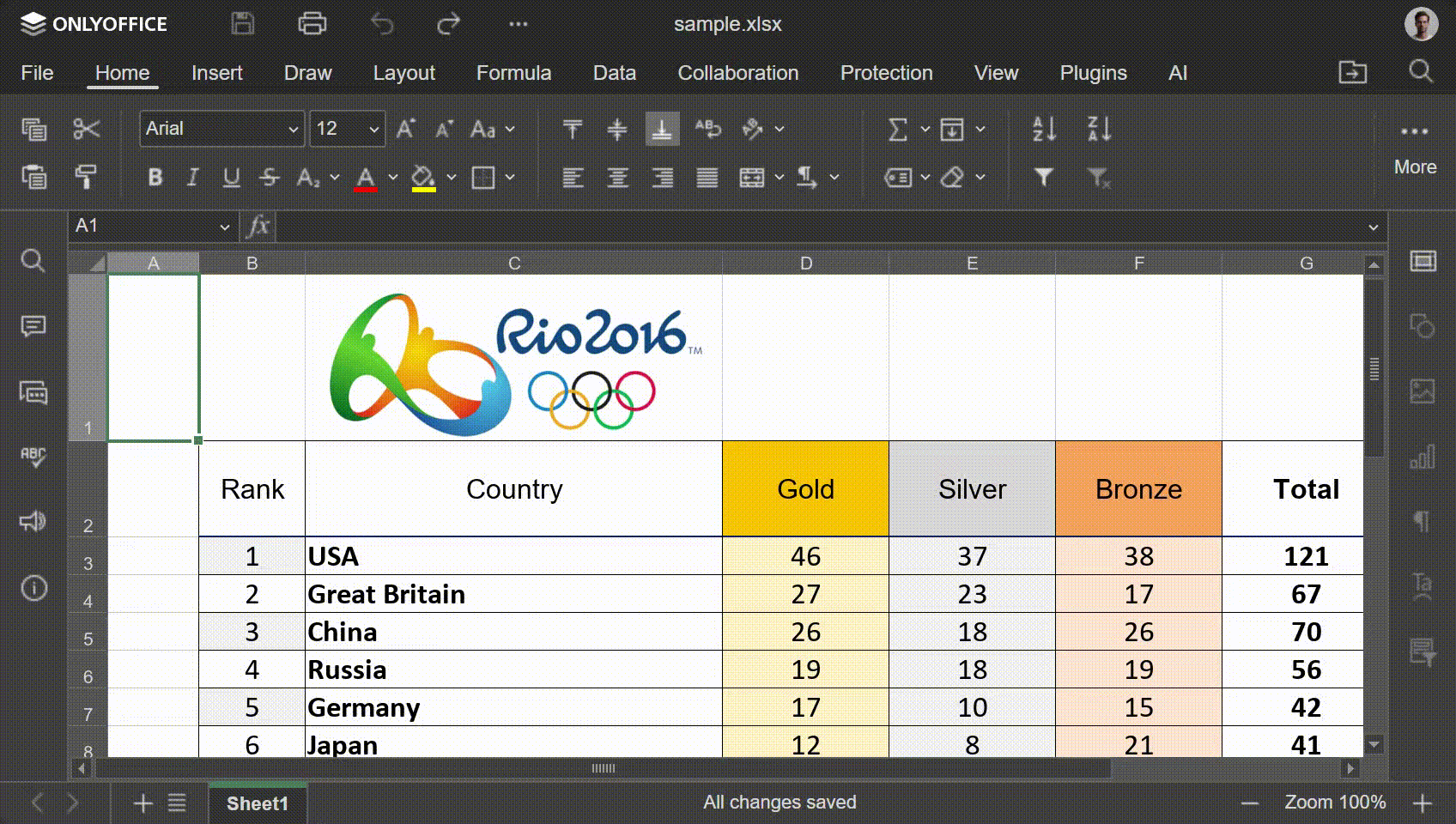

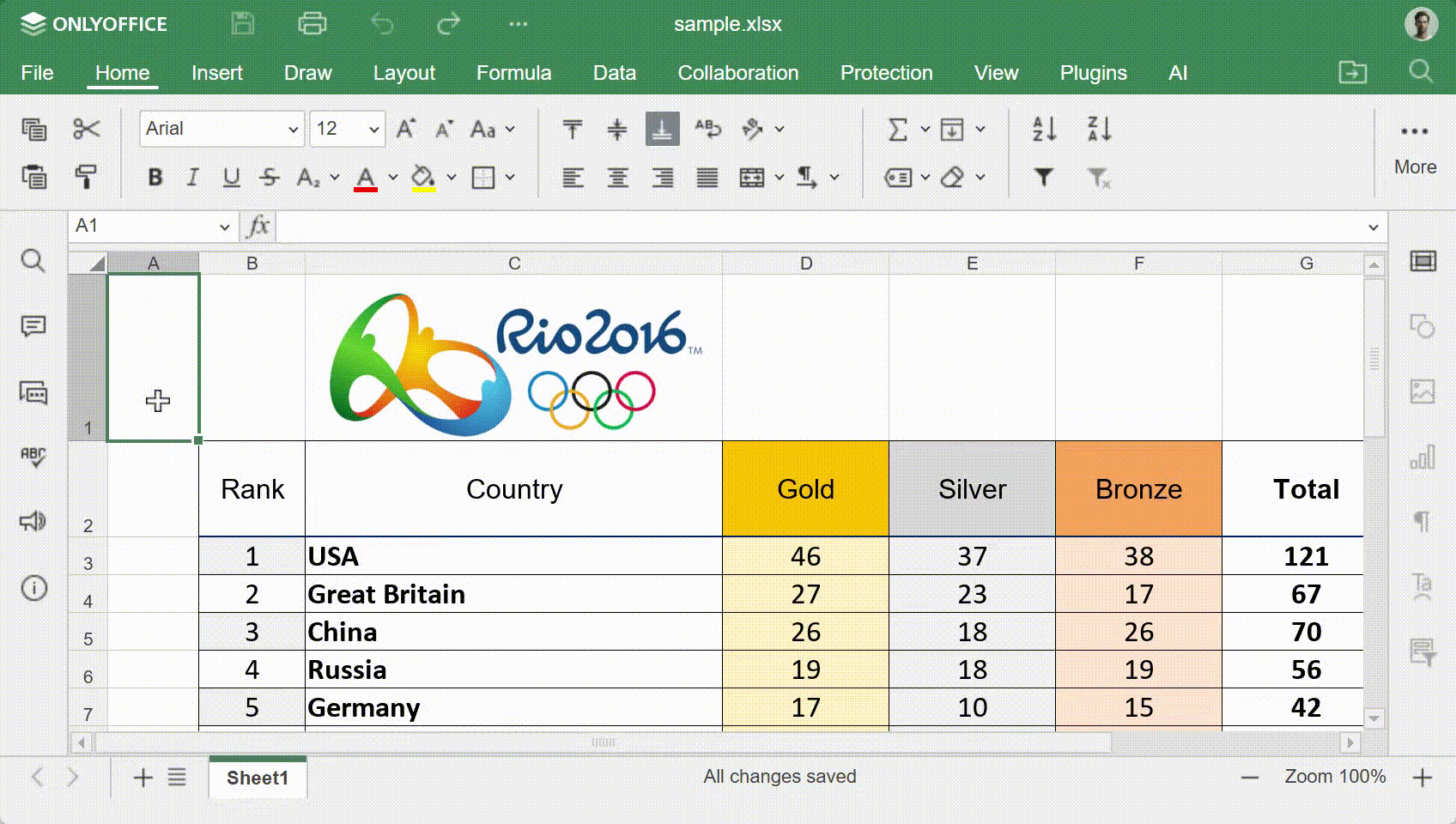

Result

setSort setSort
