FloatingButton

Round corner badge that shows the progress of a background operation and opens its panel. It is the disc that appears in the bottom corner of the portal while files are uploading.

Use this when / not when

Use for one long operation running in the background — an upload, a conversion, a bulk move — that the user should be able to watch and come back to.
Not for the progress of a single row; LoadingButton is the 16px version that sits inline.
Not for a determinate bar inside a panel — ProgressBar is that.
Not for a primary action floating over the content: this one is a status badge, and its colour is fixed to the accent.

Import

import { FloatingButton } from "@onlyoffice/apps-ui-kit/components/floating-button";

Also exported from the root barrel @onlyoffice/apps-ui-kit.

Needs ThemeProvider from @onlyoffice/apps-ui-kit/providers/theme, and specifically its colour scheme: the circle's background is the accent colour, and without one it has no background at all unless you pass color.

Stories

Default

An upload that has just started, with no progress value yet, so the ring spins; change any other prop live in the Controls panel below.

With Progress

Floating button showing upload progress at 45%. The circular progress indicator fills as the percentage increases.

With Alert

A red exclamation mark on the circle's upper edge, for an operation that needs the user's attention, such as one that finished with errors (alert).

Completed

A finished operation: the ring fades out, the circle pulses once and a green tick stays on its upper edge (completed).

Stopped

Floating button in stopped state. Shows the minus status icon when the user aborts a running operation, instead of the success checkmark.

Icon Variants

Floating buttons with different icon variants. Shows the available built-in icons for common operations.

Without Progress

The bare circle with no ring, for an operation whose progress is not worth showing, or a badge that only opens a panel (withoutProgress).

Without Status Badge

A finished move with no tick on the circle: the ring still fades out, but the badge on the upper edge is hidden whatever the state props say (withoutStatus).

Custom Color

The circle, the ring and the accent parts of the icon in a colour of your own instead of the accent colour, for example one per kind of operation (color).

Custom Icon Image

An image of your own in the middle, 20px wide, for an operation none of the built-in icons fits (iconUrl).

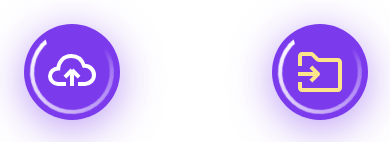

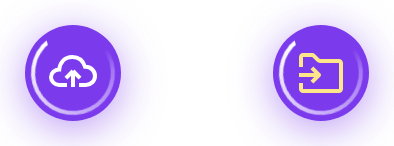

Css Customization

Two buttons under one wrapper that sets the background, the shadow and the icon colour -- the variables are listed under CSS variables on this page.

Upload — the background and the shadow; its icon is one of the accent icons (upload, trash, deletePermanently, other), whose shapes are painted in the background colour, so the icon colour does not reach it
Move — the icon colour, on an icon that is not an accent one

Minimal example

The component positions itself against the nearest positioned ancestor — see "Behaviour the types don't state".

import { FloatingButton } from "@onlyoffice/apps-ui-kit/components/floating-button";

export function UploadBadge({
  percent,
  onOpen,
}: {
  percent: number;
  onOpen: () => void;
}) {
  return (
    <div style={{ position: "relative", height: 200 }}>
      <FloatingButton icon="upload" percent={percent} onClick={onOpen} />
    </div>
  );
}

Props

Property	Type	Description
`alert`?	`boolean`	Whether the badge shows the warning triangle. `stopped` wins over it. Default: `false`.
`className`?	`string`	Applied to the circle, after the component's own classes.
`clearUploadedFilesHistory`?	`() => void`	Called when the cancel cross is clicked.
`color`?	`string`	CSS colour of the circle and of the progress ring. Without it the accent colour is used.
`completed`?	`boolean`	Whether the operation is finished: the ring fades out and the circle pulses once. Default: `false`.
`icon`?	`"arrow" \| "backup" \| "copy" \| "deletePermanently" \| "dots" \| "download" \| "duplicate" \| "exportIndex" \| "markAsRead" \| …`	Which of the built-in icons is drawn in the middle. Ignored when `iconUrl` is set. Default: `"other"`.
`iconUrl`?	`string`	URL of an image to draw instead of the built-in icon, at 20px wide.
`id`?	`string`	Applied to the circle, not to the wrapper that positions it.
`onClick`?	`(e: React.MouseEvent) => void`	Called with the event when the circle is clicked. The cancel cross has its own handler.
`percent`?	`number`	How much of the ring is filled, 0–100. Without it the ring spins instead.
`showCancelButton`?	`boolean`	Whether the cancel cross exists at all. It is only visible on hover unless `showCloseIcon` is set.
`showCloseIcon`?	`boolean`	Whether that cross stays visible without hovering.
`stopped`?	`boolean`	Shows the "stopped" status icon: the operation was aborted by the user. Takes precedence over `alert` and `completed`. Default: `false`.
`style`?	`CSSProperties`	Applied to the circle as inline style.
`withoutProgress`?	`boolean`	Whether the progress ring is left out entirely, leaving the bare circle.
`withoutStatus`?	`boolean`	Whether the status badge is suppressed whatever `stopped`, `alert` and `completed` say. Default: `false`.

Added by the wrapper the folder exports

The index module exports a wrapped component, so these are accepted on top of the props above.

Property	Type	Description
`ref`?	`Ref<HTMLDivElement>`	Allows getting a ref to the component instance. Once the component unmounts, React will set `ref.current` to `null` (or call the ref with `null` if you passed a callback ref).

icon is a key of FloatingButtonIcons, which is exported beside the component: upload, trash, move, duplicate, plus, minus, refresh, exportIndex, dots, arrow, deletePermanently, download, copy, markAsRead, other, backup.

Recipes

Finished

completed fades the ring out, plays a one-off brightening of the circle and turns the badge into a tick.

import { FloatingButton } from "@onlyoffice/apps-ui-kit/components/floating-button";

export function UploadDone({ onOpen }: { onOpen: () => void }) {
  return (
    <div style={{ position: "relative", height: 200 }}>
      <FloatingButton icon="upload" completed onClick={onOpen} />
    </div>
  );
}

Failed or aborted

alert draws the warning triangle and stopped the "aborted" mark, which wins over both alert and completed.

import { FloatingButton } from "@onlyoffice/apps-ui-kit/components/floating-button";

export function UploadFailed({ onOpen }: { onOpen: () => void }) {
  return (
    <div style={{ position: "relative", height: 200 }}>
      <FloatingButton icon="upload" alert completed onClick={onOpen} />
    </div>
  );
}

Cancellable

showCancelButton adds a cross beside the circle, which calls clearUploadedFilesHistory. It only appears on hover unless showCloseIcon keeps it out.

import { FloatingButton } from "@onlyoffice/apps-ui-kit/components/floating-button";

export function CancellableUpload({
  percent,
  onOpen,
  onCancel,
}: {
  percent: number;
  onOpen: () => void;
  onCancel: () => void;
}) {
  return (
    <div style={{ position: "relative", height: 200 }}>
      <FloatingButton
        icon="upload"
        percent={percent}
        onClick={onOpen}
        showCancelButton
        clearUploadedFilesHistory={onCancel}
      />
    </div>
  );
}

Behaviour the types don't state

The component positions itself. From the desktop breakpoint up its wrapper is position: absolute, 100×70, pinned to the bottom trailing corner of the nearest positioned ancestor, at z-index: 300; the circle inside it is z-index: 500. Give it a position: relative parent, or it will pin itself to something further up the page.
The background is !important and comes from the theme's colour scheme. Without a colour scheme — and without color — the declaration resolves to nothing and the circle is drawn transparent, icon and ring floating on the page.
percent does not complete the operation. The finished look is controlled by completed alone; percent={100} keeps the ring and the running look until you pass it.
Without percent the ring spins. The indeterminate animation is the default, and a percent above 0 replaces it with an arc of that share.
withoutProgress removes the ring, not the animation — the circle is drawn on its own, and percent then has nothing to show.
The cancel cross lives outside the circle, 77px from the trailing edge and 33px from the bottom of the wrapper, and fades in on hover. On a device with no hover it is invisible unless showCloseIcon is set. Its handler is clearUploadedFilesHistory, not onClick.
showCancelButton and showCloseIcon are two different switches. The first decides whether the cross exists; the second whether it is visible without hovering.
The status badge has a fixed precedence: stopped, then alert, then completed. withoutStatus suppresses all three.
iconUrl is rendered as a plain <img width={20}> with alt="icon", so it is not recoloured by the theme the way the built-in icons are.
id, className and style go on the circle, not on the wrapper that carries the position — so className cannot be used to move the button.
The circle is 48px, the ring 38px and the icon box 38px. There is no size prop, and --floating-button-button-size only resizes the clickable disc — see "CSS variables".

CSS variables

Set them on any ancestor.

Variable	Default	Effect
`--floating-circle-button-background`	accent colour	Circle and progress ring colour, and the fill of the accent icons' shapes.
`--floating-button-button-size`	`48px`	Width and height of the clickable circle only; the ring and the icon stay 48px in its corner.
`--floating-button-icon`	theme token	Fill of the icon, except the accent icons.
`--floating-button-shadow`	theme shadow	Whole `box-shadow` of the circle.

The accent icons are upload, trash, deletePermanently and other: their shapes are painted in the circle's colour, so --floating-button-icon does not reach them.

--floating-button-button-size resizes nothing but the clickable disc — the ring, the icon box and the status badge are laid out in a fixed 48px box in its top corner, so any other value puts them out of line with it.

color writes the first of these inline, so it wins over an ancestor's value.

Accessibility

The circle is a <div> with a click handler. It carries data-role="button" — an attribute, not the role — so assistive technology sees a plain element, and there is no tabIndex or key handler to reach it with.
aria-label is set to the icon's name followed by the word "button" ("upload button"), in English regardless of the interface language, and cannot be overridden.
The progress is conveyed only by the ring: no role="progressbar", no aria-valuenow, so the percentage is invisible to a screen reader.
An iconUrl image is announced by its alt, which is always "icon".
The cancel cross is an SVG with a click handler and no name of its own. Anything cancellable needs a real control elsewhere as well.

Test ids

Element	`data-testid`
The circle	`floating-button`
The ring	`floating-button-progress`
The status badge	`floating-button-alert`
Its icon	`floating-button-stopped-icon`, `-alert-icon`, `-tick-icon`
The cancel cross	`floating-button-close-icon`
The main icon	`icon-<name>`, e.g. `icon-upload`

None of them can be overridden by a prop.

LoadingButton — the same idea at 16px, inline in a row.
ProgressBar — the linear form of the same number.
OperationsProgressButton — the portal's panel this badge opens.
