CircleSkeleton

Round loading placeholder with a sweeping highlight, for an avatar or an icon that has not arrived yet. Its size comes from radius, and the centre has to be moved to match.

Use this when / not when

• Use for a round thing that is loading: an Avatar, a room logo, a circular icon.
• Not for anything rectangular — RectangleSkeleton is the one that takes a width and a height directly.
• Not when the wait has no known shape: Loader.
• Not in a server-rendered tree. It cannot be given a stable id, so its SVG ids differ between server and client; see the behaviour notes.

Import

import { CircleSkeleton } from "@onlyoffice/apps-ui-kit/components/circle";

Also exported from the root barrel @onlyoffice/apps-ui-kit.

No provider needed: the component draws itself in a fixed black at low opacity and reads nothing from the theme.

Stories

Default

A circle of radius 20 centred in a 50 by 50 box — the radius, the centre and the box size are set together, because the component's own defaults cut the circle off. Change any prop live in the Controls panel below.

Small Avatar

Small avatar-sized circle skeleton, suitable for compact user avatars.

Large Avatar

Large avatar-sized circle skeleton, suitable for profile images.

Custom Colors

A light grey circle for a surface where the default black at low opacity is too faint or the wrong tone, such as a dark one (backgroundColor, foregroundColor and their opacities).

No Animation

A still circle with no sweeping band, for a page that must not animate or a reader who asked for reduced motion (animate).

Slow Animation

The band takes 2.5 seconds per sweep instead of 2, for a calmer placeholder on a page that waits longer (speed).

Avatar Group

Multiple circle skeletons arranged in a row, simulating an avatar group placeholder.

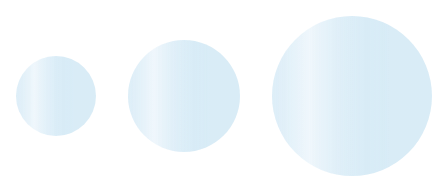

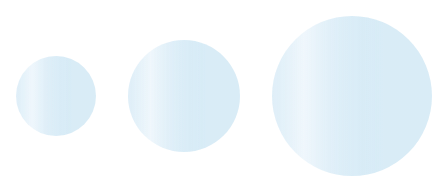

Css Customization

The component reads no CSS custom property -- see the behaviour notes on this page; its colours come from props. All three circles here set the same four props, at three sizes.

Minimal example

The three numbers go together: a circle of radius r has to be centred at r, r, in an SVG of 2r — otherwise it is cut off by the edge.

import { CircleSkeleton } from "@onlyoffice/apps-ui-kit/components/circle";

export function AvatarPlaceholder() {
  return (
    <CircleSkeleton
      x="16"
      y="16"
      radius="16"
      width="32px"
      height="32px"
      title="Loading the avatar"
    />
  );
}

Props

Property	Type	Description
animate?	boolean	Whether the band sweeps at all. Turn it off for a static placeholder. Default: true.
backgroundColor?	string	Colour of the skeleton at rest. Fixed black, not a theme colour. Default: "#000".
backgroundOpacity?	number	Opacity of backgroundColor. Default: 0.1.
className?	string	Applied to the <svg> element.
foregroundColor?	string	Colour of the band that sweeps across the skeleton. Default: "#000".
foregroundOpacity?	number	Opacity of foregroundColor. Default: 0.15.
height?	string	Height of the <svg> element. The circle's own size comes from radius. Default: "100%".
radius?	string	Radius of the circle, in user units. Default: "12".
speed?	number	Duration of one sweep, in seconds. Default: 2.
style?	React.CSSProperties	Applied to the <svg> element.
title?	string	Accessible name of the skeleton, rendered as the SVG's <title>. It is empty by default, which leaves the role="img" element unnamed. Default: "".
width?	string	Width of the <svg> element. The circle's own size comes from radius. Default: "100%".
x?	string	Centre of the circle on the horizontal axis, in user units — the SVG's cx. It is not an offset: a value below radius cuts the circle off at the left edge, which the defaults do. Default: "3".
y?	string	Centre of the circle on the vertical axis, in user units — the SVG's cy. Default: "12".

Recipes

Still, on a page that must not animate

import { CircleSkeleton } from "@onlyoffice/apps-ui-kit/components/circle";

export function StillAvatarPlaceholder() {
  return (
    <CircleSkeleton
      x="20"
      y="20"
      radius="20"
      width="40px"
      height="40px"
      animate={false}
    />
  );
}

A list of people that has not loaded

import { CircleSkeleton } from "@onlyoffice/apps-ui-kit/components/circle";
import { RectangleSkeleton } from "@onlyoffice/apps-ui-kit/components/rectangle";

export function MemberListPlaceholder({ rows }: { rows: number }) {
  return (
    <div
      style={{ display: "flex", flexDirection: "column", gap: 12 }}
      aria-busy="true"
    >
      {Array.from({ length: rows }, (_, index) => (
        <div
          key={index}
          style={{ display: "flex", alignItems: "center", gap: 12 }}
        >
          <CircleSkeleton
            x="16"
            y="16"
            radius="16"
            width="32px"
            height="32px"
          />
          <RectangleSkeleton width="160px" height="16px" />
        </div>
      ))}
    </div>
  );
}

Behaviour the types don't state

• The defaults draw a clipped circle. x="3", y="12", radius="12" put the centre three units from the left edge of a circle twelve units wide, so its left third falls outside the element and is cut off. <CircleSkeleton /> on its own is not a circle; always pass the three values together.
• width and height size the element, radius sizes the circle. They are separate, and height defaults to "100%", which collapses to nothing in a parent without a height. Give the element the diameter you want, as every example here does.
• It has no accessible name by default. The SVG carries role="img" and an aria-labelledby pointing at a <title> that is not rendered, because title defaults to "". Pass a title or mark the container aria-busy.
• The colours are fixed, not themed. Black at 10% and 15% opacity, whatever the theme, so on a dark surface it nearly disappears. backgroundColor and foregroundColor are the way in: they are written as the gradient stops' stop-color attribute, and a var() there resolves against the page, so a pair declared under .light and .dark and passed as backgroundColor="var(--my-skeleton)" follows the theme as it switches.
• It is not safe to server-render. The underlying library builds its gradient and clip-path ids from a random value unless it is given a uniqueKey, and this component neither accepts one nor supplies a stable one — so SSR and the client produce different markup. RectangleSkeleton does supply one.
• data-testid is written after the spread, so it cannot be overridden; anything else you pass lands on the <svg>.

Accessibility

• role="img" comes from the library. Without a title it is an unnamed image and a screen reader announces nothing.
• Mark the region aria-busy="true" while the placeholders are showing; the component does not do it for you.
• animate={false} is the answer for reduced motion — nothing here checks prefers-reduced-motion.

Test ids

Element	data-testid
The SVG	circle-skeleton

It cannot be overridden by a prop, so several skeletons on a page share it — query them with getAllByTestId.

Related

• RectangleSkeleton — the rectangular placeholder, and the one to pair this with in a row.
• Avatar — what this usually stands in for.
• Loader — a spinner, for work whose shape is unknown.
