RectangleSkeleton

Rectangular loading placeholder with a sweeping highlight, sized to the content it stands in for. One element per rectangle: a paragraph of three lines is three of these.

Use this when / not when

• Use when the shape of what is coming is known — a line of text, a button, a card, a table cell. The page does not jump when the content replaces it.
• Not when the duration is unknown and the shape is not: Loader is the spinner for that.
• Not for a round placeholder — that is CircleSkeleton, which takes a radius instead of a width and a height.
• Not when the content is not coming at all. An empty list is EmptyView, not a skeleton that never resolves.

Import

import { RectangleSkeleton } from "@onlyoffice/apps-ui-kit/components/rectangle";

Also exported from the root barrel @onlyoffice/apps-ui-kit.

No provider needed: the component draws itself in a fixed black at low opacity and reads nothing from the theme.

Stories

Default

A single placeholder with slightly rounded corners and the sweeping band; change any prop live in the Controls panel below.

Small Circle

A square with half its width as the corner radius turns into a circle (borderRadius), for an avatar placeholder that keeps the SSR-safe ids CircleSkeleton lacks.

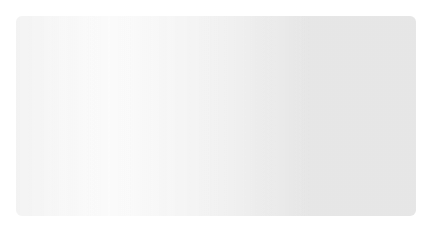

Custom Colors

A light grey rectangle with a paler band, for a surface where the default black at low opacity does not read, such as a dark theme (backgroundColor, foregroundColor and their opacities).

No Animation

The same rectangle without the sweep, for a page that must not animate, such as one shown to a user who asked for reduced motion (animate).

Slow Animation

The band takes two and a half seconds to cross instead of two, a calmer pace for a large area (speed).

Grid

Six placeholders filling a three-column grid, each 100% of its cell's width, as a card grid shows while its items load.

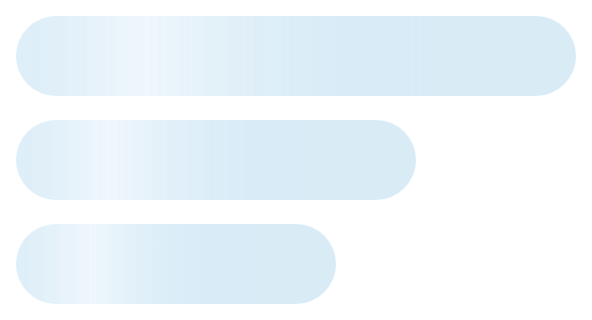

Css Customization

There are no CSS variables to list on this page: the component reads none, as "Behaviour the types don't state" explains, so this example styles three pills of different widths with the same five props: backgroundColor, foregroundColor, their opacities and borderRadius.

Minimal example

width and height are the SVG's own size, so the skeleton is exactly as large as you say.

import { RectangleSkeleton } from "@onlyoffice/apps-ui-kit/components/rectangle";

export function TitlePlaceholder() {
  return (
    <RectangleSkeleton width="180px" height="22px" title="Loading the title" />
  );
}

Props

Property	Type	Description
animate?	boolean	Whether the band sweeps at all. Turn it off for a static placeholder. Default: true.
backgroundColor?	string	Colour of the skeleton at rest. Fixed black, not a theme colour. Default: "#000".
backgroundOpacity?	number	Opacity of backgroundColor. Default: 0.1.
borderRadius?	string	Corner radius of the rectangle, in user units. Default: "3".
className?	string	Applied to the <svg> element.
foregroundColor?	string	Colour of the band that sweeps across the skeleton. Default: "#000".
foregroundOpacity?	number	Opacity of foregroundColor. Default: 0.15.
height?	string	Height of the <svg> element and of the rectangle inside it. Default: "32px".
speed?	number	Duration of one sweep, in seconds. Default: 2.
style?	CSSProperties	Applied to the <svg> element.
title?	string	Accessible name of the skeleton, rendered as the SVG's <title>. It is empty by default, which leaves the role="img" element unnamed. Default: "".
uniqueKey?	string	Optional stable id used as uniqueKey for the underlying react-content-loader. When omitted, a useId() value is used so SSR and client render the same SVG ids and no hydration mismatch is reported.
width?	string	Width of the <svg> element and of the rectangle inside it. Any SVG length, so a percentage of the parent works. Default: "100%".
x?	string	Left edge of the rectangle inside the SVG, in user units. Default: "0".
y?	string	Top edge of the rectangle inside the SVG, in user units. Default: "0".

Recipes

A block of text

Each line is its own element; the varying widths are what make it read as text.

import { RectangleSkeleton } from "@onlyoffice/apps-ui-kit/components/rectangle";

export function ParagraphPlaceholder() {
  return (
    <div
      style={{ display: "flex", flexDirection: "column", gap: 8 }}
      aria-busy="true"
    >
      <RectangleSkeleton width="100%" height="16px" title="Loading" />
      <RectangleSkeleton width="80%" height="16px" />
      <RectangleSkeleton width="55%" height="16px" />
    </div>
  );
}

A row of a list, with its avatar

import { CircleSkeleton } from "@onlyoffice/apps-ui-kit/components/circle";
import { RectangleSkeleton } from "@onlyoffice/apps-ui-kit/components/rectangle";

export function MemberRowPlaceholder() {
  return (
    <div style={{ display: "flex", alignItems: "center", gap: 12 }}>
      <div style={{ width: 32, height: 32 }}>
        <CircleSkeleton x="16" y="16" radius="16" width="32px" height="32px" />
      </div>
      <RectangleSkeleton width="140px" height="16px" />
    </div>
  );
}

Still, on a page that must not animate

import { RectangleSkeleton } from "@onlyoffice/apps-ui-kit/components/rectangle";

export function StillPlaceholder() {
  return <RectangleSkeleton width="100%" height="32px" animate={false} />;
}

Behaviour the types don't state

• It has no accessible name by default. The underlying SVG carries role="img" and an aria-labelledby that points at the <title> — and title defaults to "", so no title is rendered and the id resolves to nothing. Give the skeleton that stands for a whole region a title, or mark the region aria-busy as the recipes do.
• The colours are fixed, not themed. backgroundColor and foregroundColor both default to black at 10% and 15% opacity. On a dark surface that is nearly invisible. The component reads no theme variable of its own, but the props are written as the gradient stops' stop-color attribute, and a var() there resolves against the page like any other: declare a pair under .light and .dark and pass backgroundColor="var(--my-skeleton)", and the skeleton follows the theme as it switches. Choosing a hex in JavaScript from a dark-mode flag works too, but it is a second copy of the theme to keep in step.
• width and height size both the element and the rectangle inside it. The SVG has no viewBox, so x, y and borderRadius are in the element's own pixels. A skeleton with height="100%" needs a parent with a height, or it collapses. A percentage borderRadius is taken of the element's width, so "50%" on a square draws a circle.
• The animation is one linear gradient sweeping across the shape for speed seconds, forever, until animate={false} stops it; unmount the skeleton when the content arrives.
• uniqueKey exists because the library picks a random id per render otherwise, which makes server and client markup differ. The component passes a useId() value when you leave it out, so the default is already SSR-safe — CircleSkeleton has no such prop and is not.
• data-testid is written after the spread, so it cannot be overridden; anything else you pass lands on the <svg>.

Accessibility

• role="img" comes from the library. Without a title it is an unnamed image, which a screen reader announces as nothing at all.
• A skeleton is not a live region. Mark the container aria-busy="true" while it is showing, and move focus or announce the result yourself when the content arrives.
• animate={false} is the honest answer to a user who asked for reduced motion; the component does not check prefers-reduced-motion on its own.

Test ids

Element	data-testid
The SVG	rectangle-skeleton

It cannot be overridden by a prop, so several skeletons on a page share it — query them with getAllByTestId.

Related

• CircleSkeleton — the round placeholder, for avatars and icons.
• Loader — a spinner, for work whose shape is unknown.
• EmptyView — for when the content never arrives because there is none.
