InfiniteLoader

Virtualised list or grid that asks for the next page as the user scrolls towards the end. It is built for the DocSpace portal's layout and looks for the portal's own elements by id.

Use this when / not when

• Use for thousands of rows or tiles, where rendering them all would be too slow — RowContainer and Table use it for exactly that.
• Not in an application that is not the portal, unless you reproduce the portal's scroll element: this component looks for #sectionScroll and falls back to the window.
• Not for a list of a few dozen items. Virtualisation costs a fixed row height, a measured container and a scroll container; a plain list costs none of that.
• Not to show that something is loading — Loader or RectangleSkeleton is that.

Import

import { InfiniteLoaderComponent } from "@onlyoffice/apps-ui-kit/components/infinite-loader";

Also exported from the root barrel @onlyoffice/apps-ui-kit.

The export is named InfiniteLoaderComponent, not InfiniteLoader, and InfiniteLoaderProps is not exported — import the type from its file path if you need it.

Needs ThemeProvider from @onlyoffice/apps-ui-kit/providers/theme for the skeletons it shows between pages.

Stories

Default

Scroll the box: when the end of the loaded items comes near, the loader asks for the next range, and the new items arrive half a second later (loadMoreItems, logged in the Actions panel). In the tile layout each child is one row of the grid; here a plain box stands in for a row of tiles. Change any other prop live in the Controls panel below.

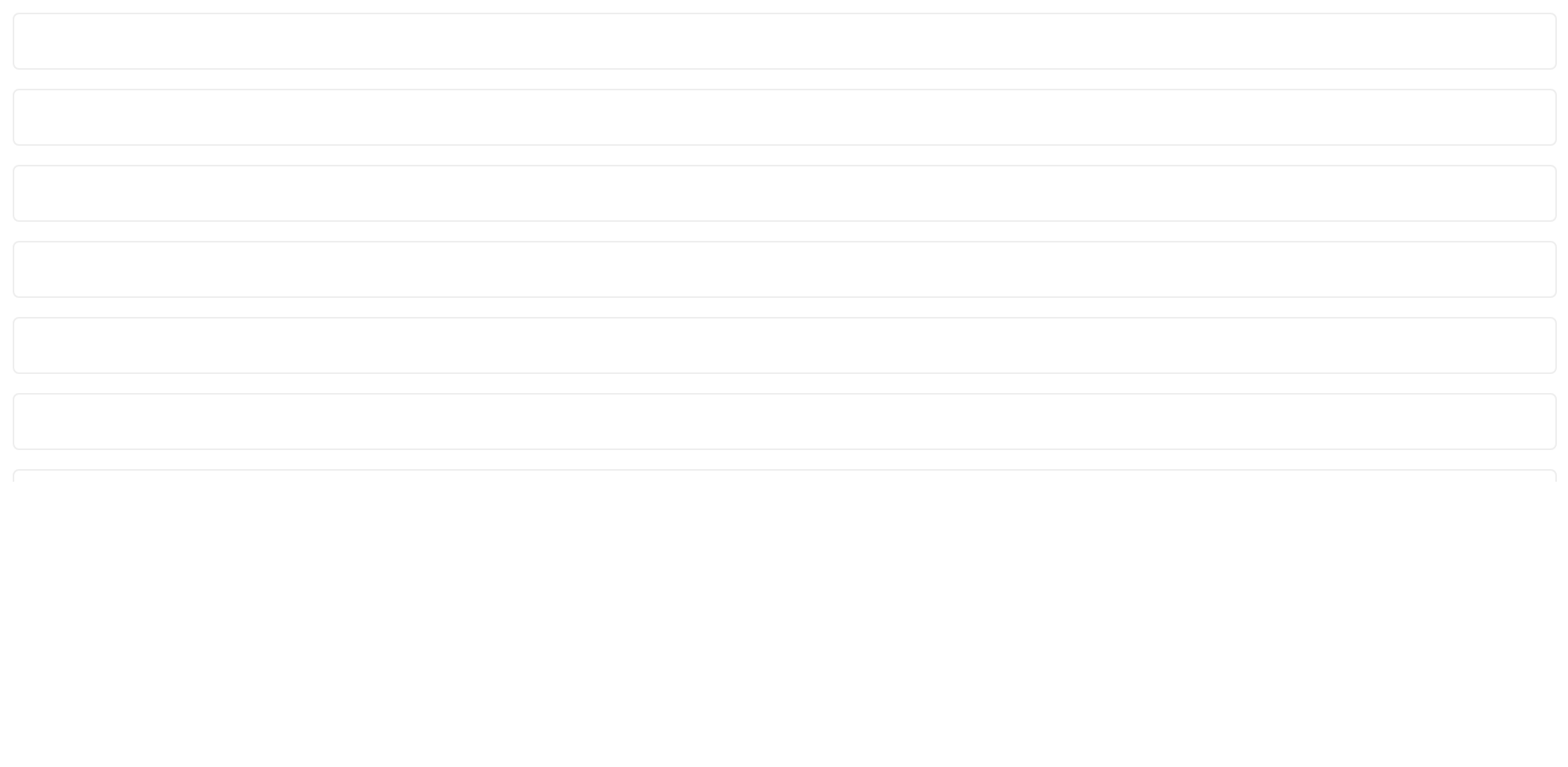

Row Layout

A list of rows of one height (viewAs="row", itemSize). Scroll to the end: the rows after the last loaded item are skeleton rows until the next page arrives, and a jump of more than 800px, such as dragging the scrollbar, turns every row in view into a skeleton while the scrolling lasts.

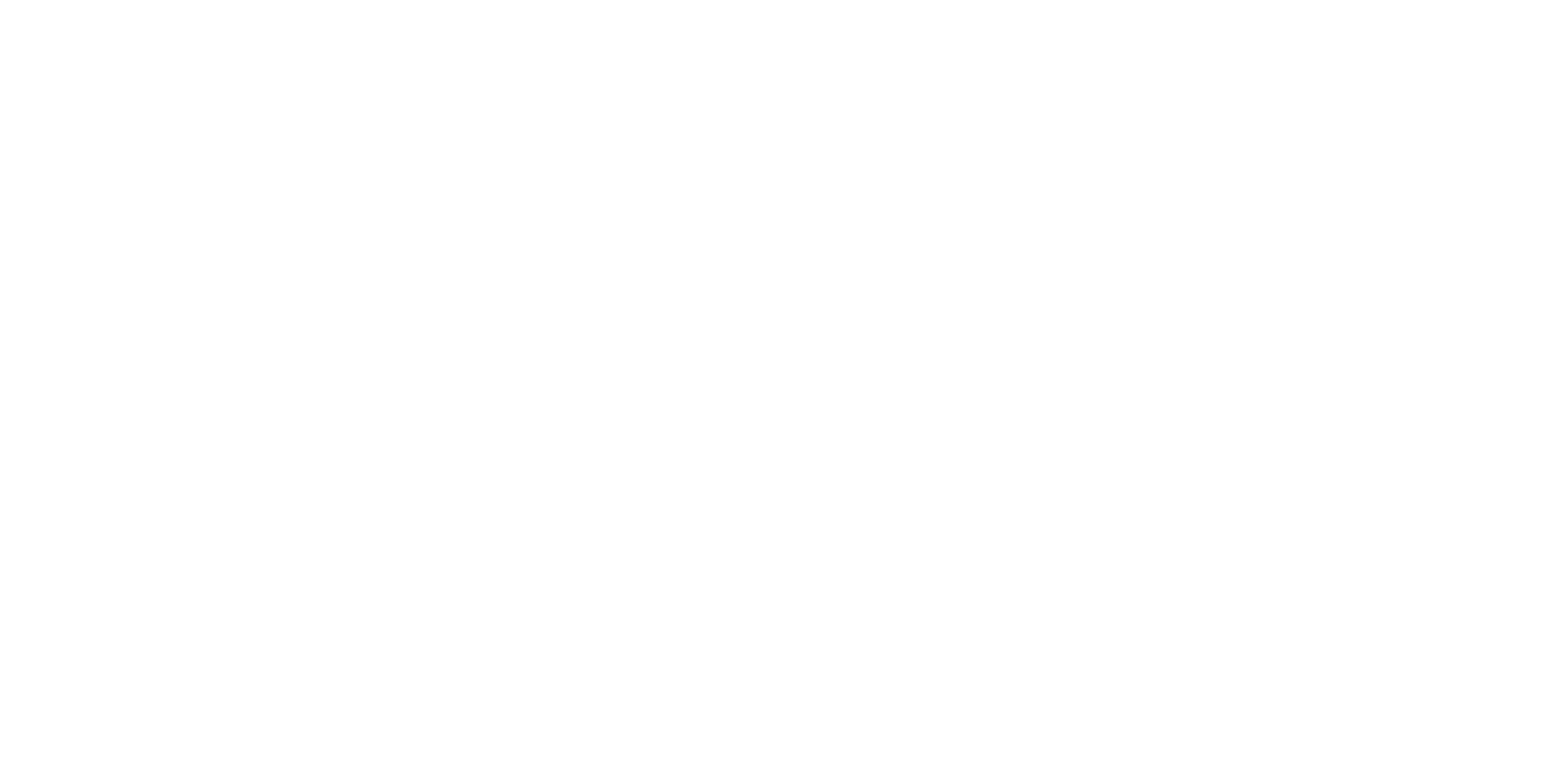

Table Layout

A table whose rows share one column layout (viewAs="table"). The layout is not passed as a prop: the loader reads it from localStorage under the key it is given (columnStorageName, or columnInfoPanelStorageName while infoPanelVisible is set), which lets the table header that saves the widths and the rows below stay in step. The rows not loaded yet show the table skeleton.

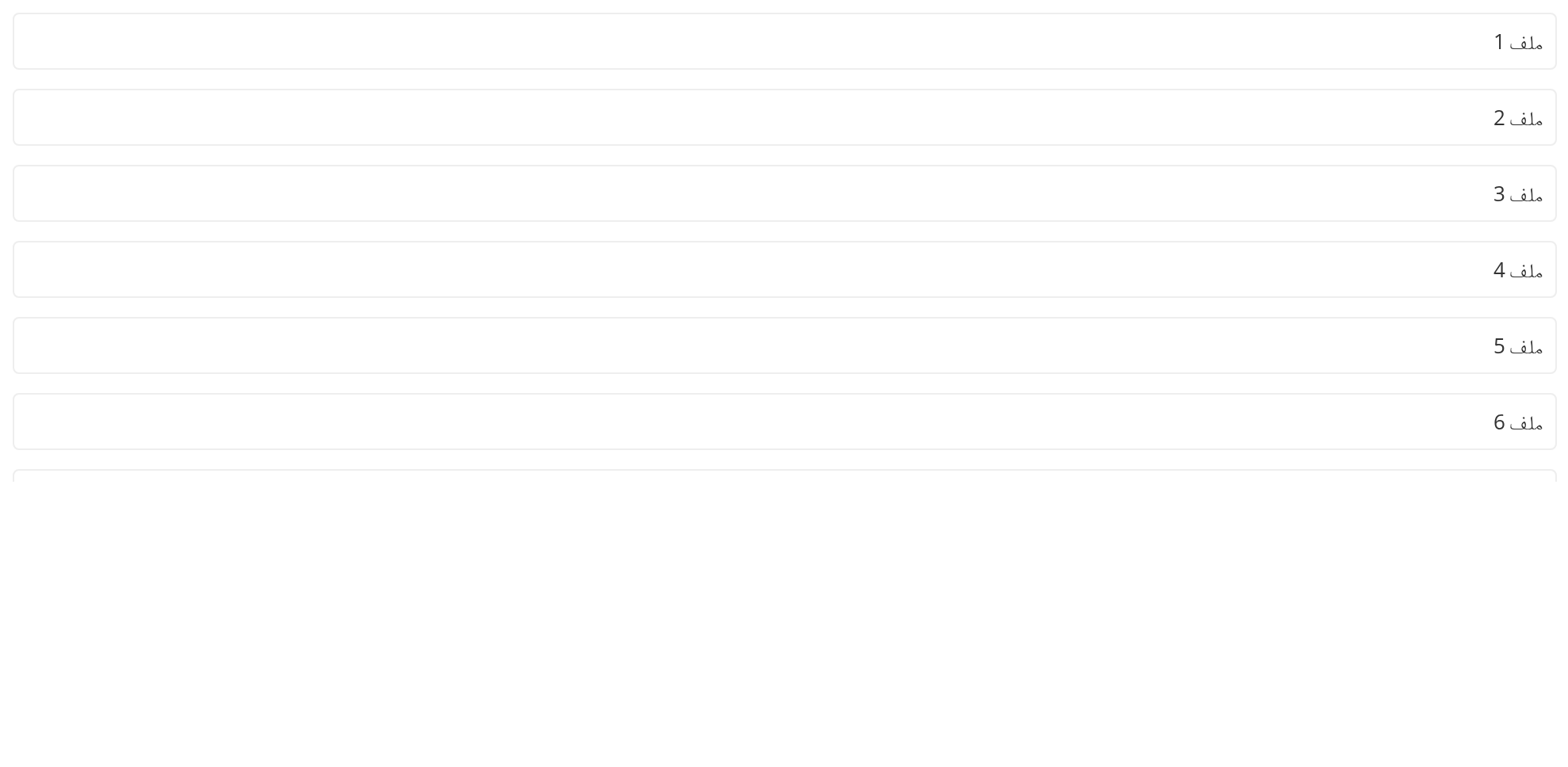

Right To Left

The row layout in a right-to-left interface: the text of each row starts at the right edge of the row instead of the left.

Css Customization

The three tile variables set on one wrapper -- the variables are listed under CSS variables on this page. They size only the skeleton tiles, which appear for a moment when the box is scrolled by more than 800px at once — drag the scrollbar quickly to see them.

Minimal example

itemSize is the height of every row alike, and loadMoreItems is called with the range to fetch.

import { InfiniteLoaderComponent } from "@onlyoffice/apps-ui-kit/components/infinite-loader";

export function NameList({
  names,
  total,
  loadMore,
}: {
  names: string[];
  total: number;
  loadMore: () => Promise<void>;
}) {
  return (
    <div id="rowContainer" style={{ height: 400 }}>
      <InfiniteLoaderComponent
        viewAs="row"
        itemSize={50}
        filesLength={names.length}
        itemCount={total}
        hasMoreFiles={names.length < total}
        loadMoreItems={() => loadMore()}
      >
        {names.map((name) => (
          <div key={name}>{name}</div>
        ))}
      </InfiniteLoaderComponent>
    </div>
  );
}

Props

Property	Type	Description
children	ReactNode[]	The items. It must be an array, one entry per row or tile.
filesLength	number	How many items are loaded so far.
hasMoreFiles	boolean	Whether there is another page to ask for.
itemCount	number	How many items there are in total, loaded or not.
itemSize	number	Height of one row, or of one tile, in pixels. It is the same for all of them.
loadMoreItems	(params: IndexRange) => Promise<void>	Called with the range to load when the user scrolls near the end.
viewAs	TViewAs	Which layout to render: tile lays the children out in a grid, anything else in a list. It also picks the skeleton shown while a page loads — table and row have one, the rest show nothing.
className?	string	Applied to the list element.
columnInfoPanelStorageName?	string	The info-panel variant of that key.
columnStorageName?	string	localStorage key of the table's column widths, for the table skeleton.
countTilesInRow?	number	How many tiles fit on a row, in the tile layout.
currentFolderId?	number | string	Identifier of the folder being shown, which resets the grid when it changes.
infoPanelVisible?	boolean	Narrows the layout for an open info panel.
isLoading?	boolean	Renders nothing at all while it is true.
isOneTile?	boolean	Lays a single tile out on its own row.
onScroll?	() => void	Called as the list scrolls.
showSkeleton?	boolean	Ignored by the list; the loader sets it itself after a long jump.
smallPreview?	boolean	Renders the tiles in their small form.

Recipes

Loading

isLoading renders nothing at all — not a skeleton, not an empty list — so show your own placeholder beside it.

import { InfiniteLoaderComponent } from "@onlyoffice/apps-ui-kit/components/infinite-loader";
import { RectangleSkeleton } from "@onlyoffice/apps-ui-kit/components/rectangle";

export function LoadableList({
  names,
  isLoading,
  loadMore,
}: {
  names: string[];
  isLoading: boolean;
  loadMore: () => Promise<void>;
}) {
  if (isLoading)
    return <RectangleSkeleton width="100%" height="200px" title="Loading" />;

  return (
    <div id="rowContainer" style={{ height: 400 }}>
      <InfiniteLoaderComponent
        viewAs="row"
        itemSize={50}
        filesLength={names.length}
        itemCount={names.length}
        hasMoreFiles={false}
        loadMoreItems={() => loadMore()}
      >
        {names.map((name) => (
          <div key={name}>{name}</div>
        ))}
      </InfiniteLoaderComponent>
    </div>
  );
}

Behaviour the types don't state

• It scrolls the portal's element, not itself. The component looks for #sectionScroll .scroll-wrapper > .scroller, or #customScrollBar's on a viewport of 600px or less — the inner elements of a Scrollbar — and falls back to the window when neither exists. Nothing here creates a scrolling region of its own.
• The width comes from an element found by a literal id: #table-container for the table layout, #tileContainer for tile and #rowContainer for every other. Without the right one in the document the items are laid out at a width of zero, which is why the examples above put the id on the wrapper.
• Every row and table row is itemSize tall, and a taller one is clipped. The tile layout ignores itemSize: it sizes each grid row by the class name of the child in it — isRoom, isFolder, isFile, isTemplate, or a section header otherwise — so tiles of one kind share a row height.
• The table layout takes its columns from localStorage. Each row is a CSS grid whose grid-template-columns is the value saved under columnStorageName, or under columnInfoPanelStorageName while infoPanelVisible is set. Both keys are required there: rendering a table row without either throws.
• Rows not loaded yet are skeletons. In the row and table layouts every position past filesLength shows a RowsSkeleton or TableSkeleton row until its page arrives; the tile layout shows no placeholder for them.
• A long jump in the scroll position shows skeletons for 200ms. The component watches the scroll and, when it moves more than 800px in one event, swaps the rows still scrolling for skeletons briefly — TileSkeletons in the tile layout, RowsSkeleton or TableSkeleton in row and table, and nothing for any other viewAs.
• isLoading returns null, so the region collapses rather than holding its height.
• children has to be an array; the loader indexes it and asks for two more entries than there are when hasMoreFiles is set, to leave room for the loading rows.

CSS variables

Set these on an ancestor. Everything else the stylesheet defines is private to it.

Variable	Default	Effect
--infinite-loader-tile-gap	14px 16px	Gap between the skeleton tiles of a tile row during a long scroll jump; on tablet and smaller screens it is fixed at 14px
--infinite-loader-tile-min-size	216px	Smallest width of those skeleton tiles
--infinite-loader-tile-max-size	360px	Largest width of those skeleton tiles
--infinite-loader-list-width	measured width	Width of the list in the row and table layouts, in place of the measured container width

The three tile variables size only the skeletons shown for a moment after a jump of more than 800px; the real tiles are whatever the children render. --infinite-loader-table-width is not one to set: the list writes the measured width into it on its own element, overwriting a value from outside, so use --infinite-loader-list-width instead.

Accessibility

• The list is a stack of <div>s with no list or grid roles, and only the items near the viewport exist in the DOM — assistive technology is given no total and no position.
• Nothing here is focusable, and the scrolling element belongs to whatever wraps the component.
• A list a keyboard user has to work through is better built without virtualisation.

Test ids

Element	data-testid
The list	infinite-loader-container-list
The grid	infinite-loader-container-grid

Neither can be overridden by a prop.

Related

• RowContainer — the row list built on this.
• Table — the table body built on this.
• Scrollbar — the scrolling region this looks for.
