TileContainer

Grid that sorts the tiles it is given into rooms, templates, folders and files and gives two of them a heading. It does not lay out a list of cards — it reads each child's item and decides which of four groups it belongs to.

Use this when / not when

• Use to render a DocSpace-shaped listing: rooms or templates at the top, then folders, then files, each in its own grid.
• Not as a general card grid — a child without an item prop is dropped without a word, so your own markup between the tiles never appears. Write a plain CSS grid instead.
• Not for the list view — that is RowContainer.
• It does not sort within a group. The order inside each grid is the order you passed the children in; isDesc only flips a class on the headings.
• It does not virtualise anything by itself. useReactWindow hands the groups to the infiniteGrid you supply; on its own it removes the grid wrappers and leaves the tiles unlaid-out.

Import

import { TileContainer } from "@onlyoffice/apps-ui-kit/components/tiles/tile-container";

components/index.ts does not list this folder, but it lists tiles, and export * is transitive — so the name arrives from @onlyoffice/apps-ui-kit/components/tiles and from the root barrel @onlyoffice/apps-ui-kit as well.

Needs ThemeProvider above it in the tree: the headings are the kit's Heading, which takes its colour from the custom properties the provider's .light and .dark classes declare.

Stories

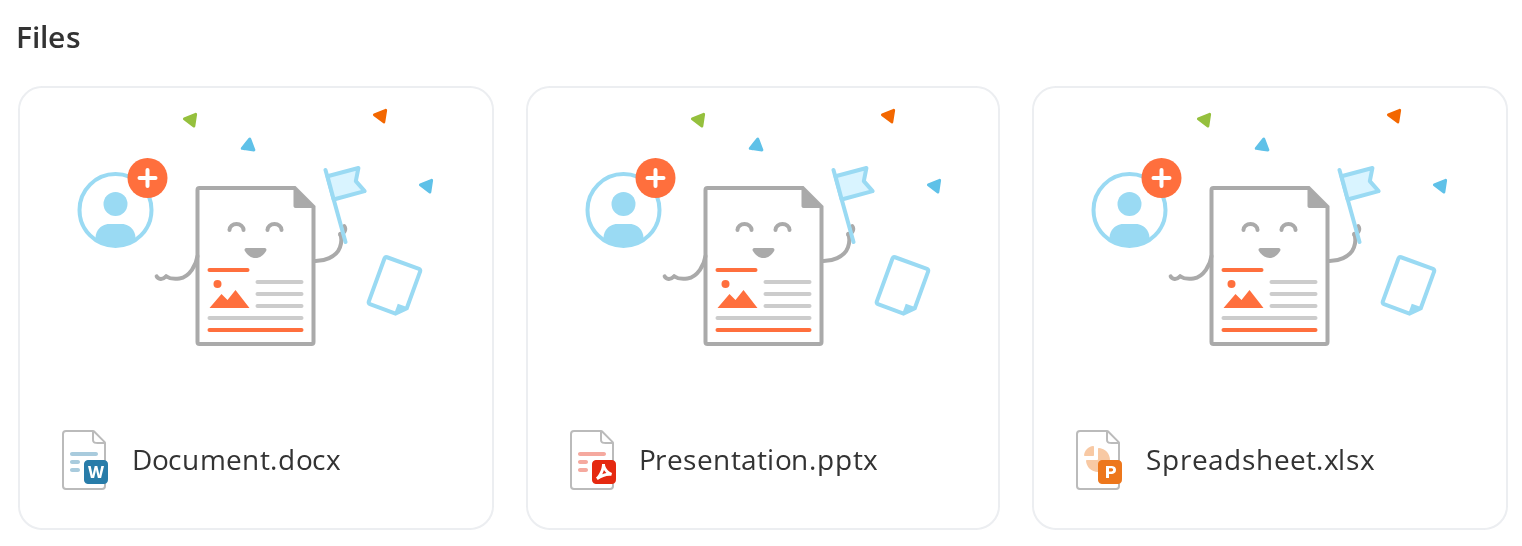

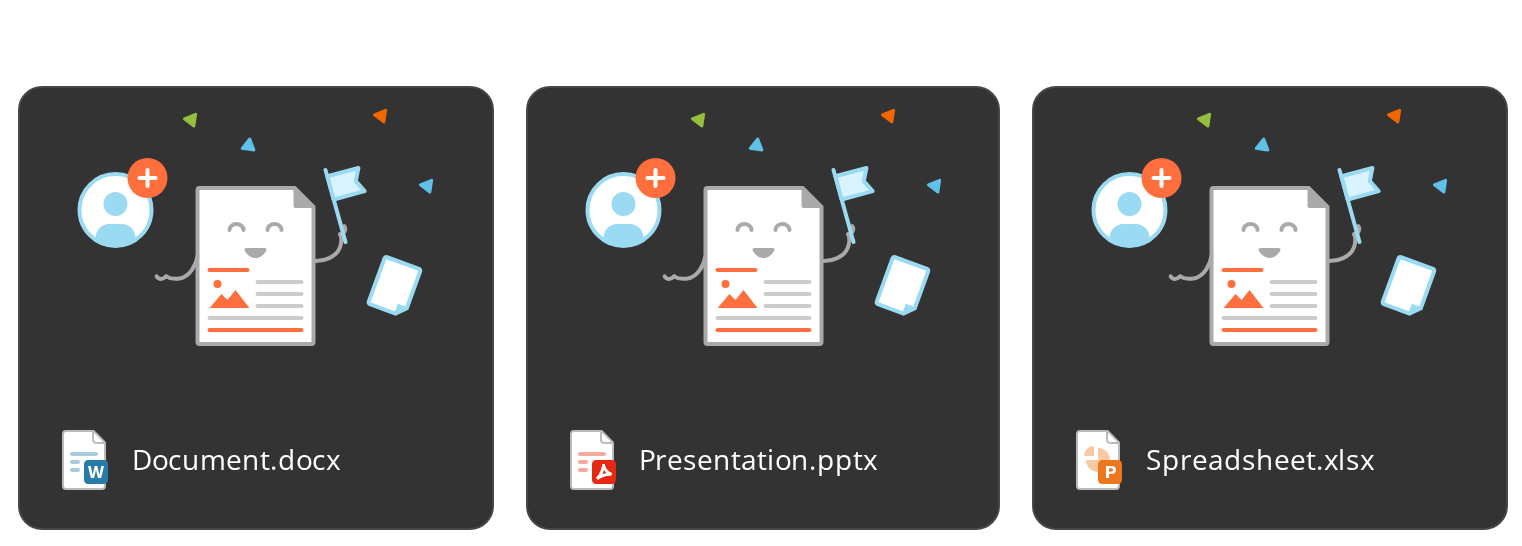

Default

Three documents under the files heading, in as many columns as the window has room for; resize the window to see the columns change, and change any other prop live in the Controls panel below.

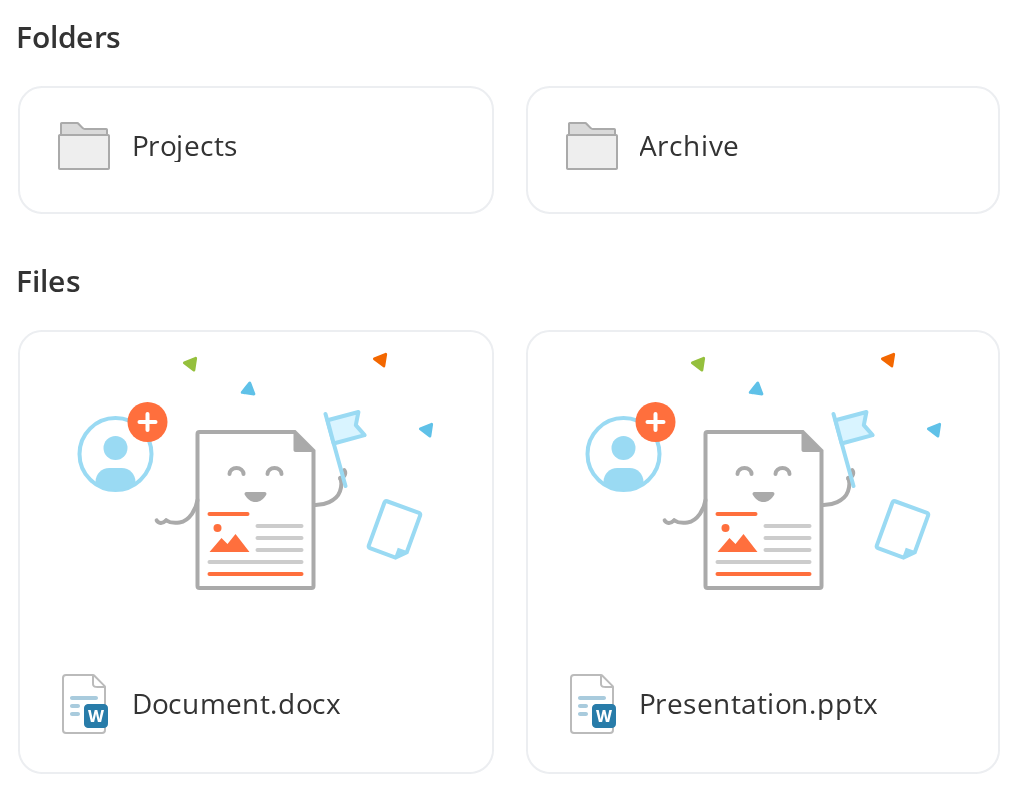

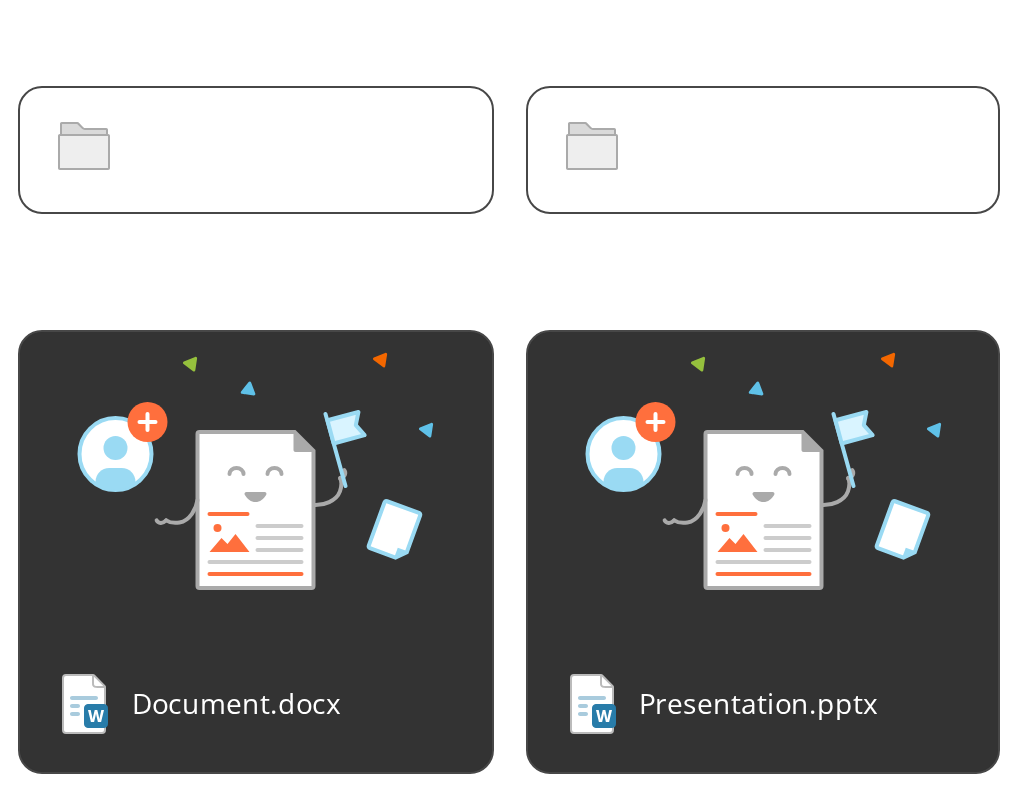

Folders And Files

A listing that holds both kinds, passed in with the files first: the grid still puts the folders on top, each group under its own heading (headingFolders, headingFiles), because it sorts by each tile's item, not by the order of the children.

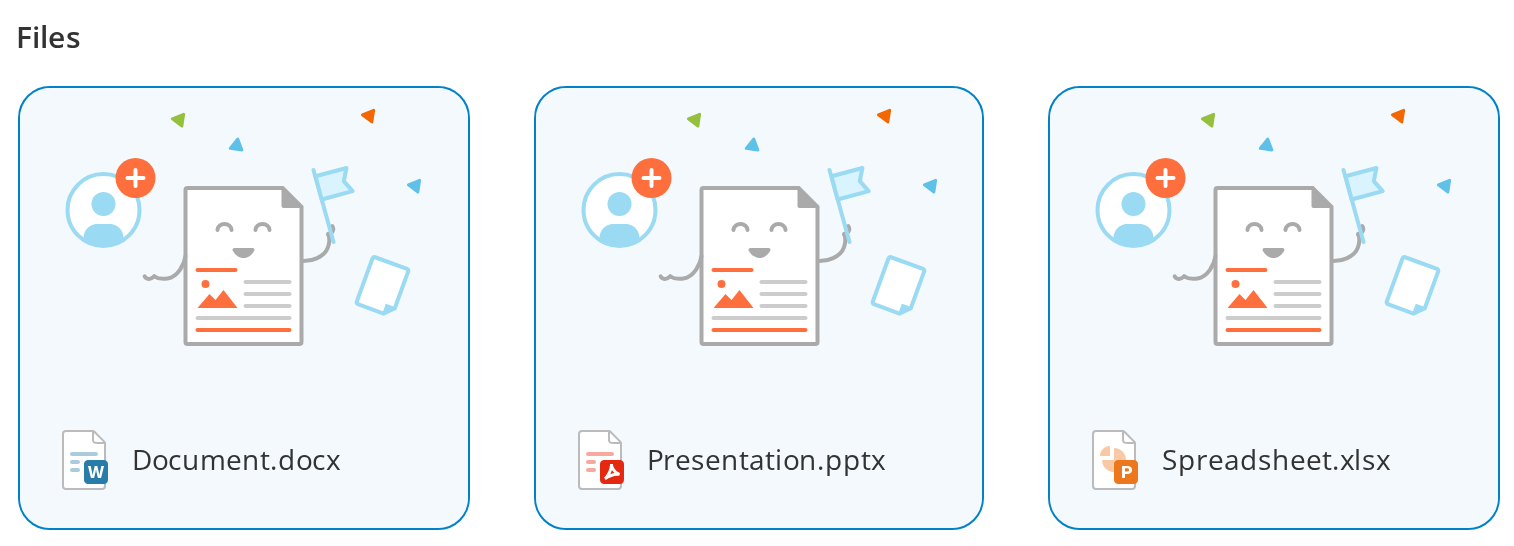

Css Customization

The variables are listed under CSS variables on this page. One grid of three files sets the gap and four of the tiles' variables; hover a tile for --tile-hover-bg. The container's own variable is the gap; the others are the tiles' and are set here once for the whole grid.

Minimal example

import { FolderTile } from "@onlyoffice/apps-ui-kit/components/tiles/folder-tile";
import { TileContainer } from "@onlyoffice/apps-ui-kit/components/tiles/tile-container";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Link } from "@onlyoffice/apps-ui-kit/components/link";

const folders = [
  { id: 1, title: "Contracts", isFolder: true, contextOptions: [] },
  { id: 2, title: "Invoices", isFolder: true, contextOptions: [] },
];

export function Listing() {
  return (
    <TileContainer headingFolders="Folders">
      {folders.map((folder) => (
        <FolderTile key={folder.id} item={folder} contextOptions={[]}>
          <TileContent>
            <Link className="item-file-name">{folder.title}</Link>
          </TileContent>
        </FolderTile>
      ))}
    </TileContainer>
  );
}

Props

Property	Type	Description
children	ReactNode	The tiles. Each one must carry an item prop; a child without it is silently dropped, including plain markup.
className?	string	Added before the component's own class on the outer element.
headingFiles?	ReactNode	Heading above the files group. It is rendered only when that group has something in it.
headingFolders?	ReactNode	Heading above the folders group. It is rendered only when that group has something in it.
id?	string	Value of id on the outer element. Default: "tileContainer".
infiniteGrid?	ComponentType<{ children: React.ReactNode; isRooms?: boolean; isTemplates?: boolean; }>	The virtualising grid to render the tiles into. It is told whether the current run is rooms or templates.
isDesc?	boolean	Flips the arrow class on both headings. It sorts nothing.
noSelect?	boolean	Turns off text selection across the whole container.
style?	CSSProperties	Inline style of the outer element, and where --tile-container-gap goes.
useReactWindow?	boolean	Hands the four groups to infiniteGrid instead of wrapping each in its own grid. Without an infiniteGrid alongside it the tiles are emitted with no grid at all.

Recipes

Folders and files together

The groups appear in a fixed order — rooms, templates, folders, files — whatever order you hand the children in. Only folders and files get a heading, and only when the group is not empty.

import { FileTile } from "@onlyoffice/apps-ui-kit/components/tiles/file-tile";
import { FolderTile } from "@onlyoffice/apps-ui-kit/components/tiles/folder-tile";
import { TileContainer } from "@onlyoffice/apps-ui-kit/components/tiles/tile-container";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Link } from "@onlyoffice/apps-ui-kit/components/link";

const folder = {
  id: "f1",
  title: "Drafts",
  isFolder: true,
  contextOptions: [],
};
const file = {
  id: "d1",
  title: "Report.docx",
  fileExst: ".docx",
  contextOptions: [],
};

export function MixedListing() {
  return (
    <TileContainer headingFolders="Folders" headingFiles="Documents">
      <FileTile item={file} contextOptions={[]}>
        <TileContent>
          <Link className="item-file-name">{file.title}</Link>
        </TileContent>
      </FileTile>
      <FolderTile item={folder} contextOptions={[]}>
        <TileContent>
          <Link className="item-file-name">{folder.title}</Link>
        </TileContent>
      </FolderTile>
    </TileContainer>
  );
}

Changing the gap

--tile-container-gap is the space between tiles in every grid. It is read from the container, so style is the natural place for it.

import type { CSSProperties } from "react";

import { FolderTile } from "@onlyoffice/apps-ui-kit/components/tiles/folder-tile";
import { TileContainer } from "@onlyoffice/apps-ui-kit/components/tiles/tile-container";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Text } from "@onlyoffice/apps-ui-kit/components/text";

const folder = {
  id: 1,
  title: "Contracts",
  isFolder: true,
  contextOptions: [],
};

export function TightListing() {
  return (
    <TileContainer style={{ "--tile-container-gap": "8px" } as CSSProperties}>
      <FolderTile item={folder} contextOptions={[]}>
        <TileContent>
          <Text>{folder.title}</Text>
        </TileContent>
      </FolderTile>
    </TileContainer>
  );
}

Behaviour the types don't state

• A child without props.item is dropped silently. The container walks its children, skips anything that is not a valid element or has no item, and renders the rest into one of four buckets. A separator, a heading of your own or a message between the tiles disappears.
• The groups render in a fixed order: rooms, templates, folders, files. The order you pass them in only decides the order inside a group.
• The sorting rules are not what the names suggest. A tile goes to folders when isFolder is set or its id is the literal -1, and in both cases only while fileExst is absent and isRoom is not set. Templates are checked next, rooms after that, and everything left over is a file — so an item with none of the flags is rendered as a file.
• id is the React key. Two items with the same id produce a duplicate-key warning and the usual reconciliation trouble.
• useReactWindow without infiniteGrid removes the layout. The grid wrappers are only emitted on the non-virtualised path, so the flag on its own leaves the tiles as loose children of the container.
• Only folders and files get a heading, and only when their group is non-empty. Rooms and templates have no heading prop at all.
• The folders heading carries the literal element id folder-tile-heading; the files heading has none. Two containers on one page give you two elements with that id.
• The outer element's id defaults to the literal tileContainer, so the same applies unless you pass your own.
• The columns are as wide as fit, with a floor that follows the viewport. Every grid is repeat(auto-fill, minmax(clamp(216px, 13.4vw, 360px), 1fr)) — rooms and templates use clamp(275px, 13.4vw, 350px) — so a column is never narrower than 216px (275px for rooms and templates), and on a wide screen the floor rises with the window, up to 360px (350px).
• Text on the tiles is selectable by default. The container sets user-select: text on itself and everything inside but images; noSelect turns it off for the whole grid.
• Each tile is wrapped in a div carrying tile-item and one of room, template, folder or file — stable hooks for a portal stylesheet, and the elements your own CSS has to target if you want to size a tile.

CSS variables

Variable	Default	Effect
--tile-container-gap	16px	Gap between tiles, across and down, in every group

The tiles' own variables — --tile-bg, --tile-border-style, --tile-radius, --tile-hover-bg and the rest listed on each tile's page — are read by the tiles, not by the container, but they inherit: set them once on the container to restyle every tile in the listing.

There is no variable for the headings. The stylesheet has rules reading --tile-container-sort-font-size, --tile-container-sort-font-weight and a set of sort-control colours, but they sit under a selector that matches no element, so none of them has any effect.

Accessibility

• The container is a plain <div> and the groups are plain <div>s: there is no list role and no count, so a screen reader hears a run of tiles with nothing tying them together.
• The two headings are real heading elements from Heading, at the kit's smallest size. Rooms and templates have none, so a listing that is only rooms has no heading at all — supply one above the container.
• Nothing here manages focus or announces that the listing changed. Announce the result count yourself when the content is replaced by a filter.

Test ids

The component sets none. Select the container by its id, which defaults to tileContainer, and the individual wrappers by the tile-item class.

Related

• Tiles — the family this belongs to.
• FileTile — the tile for a document.
• FolderTile — the tile for a folder.
