Authorization flow

When a user clicks the authorization link, any of these four scenarios can occur:

Scenario 1: User authorization

For users not yet authorized in the workspace, the authorization link opens an authorization form where they enter their email and password and sign in. On successful authorization, they are redirected to the pages described in scenarios 2 and 3.

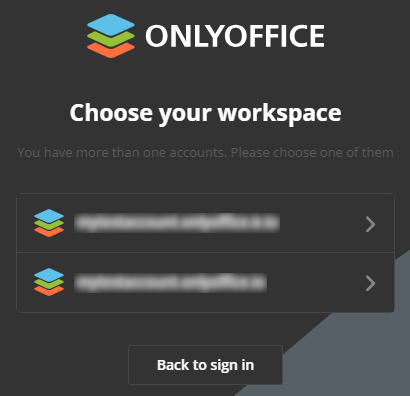

Scenario 2: Workspace selection

If the user has more than one workspace with the entered personal data, they will be redirected to the page for choosing the necessary one.

Scenario 3: Consent page

Authorized users are redirected to a consent page that lists all the application abilities while displaying the URLs to the privacy policy and terms of service. This page also provides the possibility to change the user profile.

Click Allow or Deny to finish the authorization flow.

Scenario 4: Error page

If the authorization link contains invalid parameters, the user is redirected to an error page. The page displays a message that describes the specific error, for example:

• the client_id parameter is missing or the application with this ID does not exist;
• the redirect_uri does not match the redirect URI specified in the application settings.

How it works

1. When the user clicks the Allow button on the consent page, they will be redirected to redirect_uri where the code field will be added to the search.

   备注

   If the user clicks the Deny button on the consent page, they will be redirected to redirect_uri with an error, without the possibility to get JWT.

   To send a consent request, you can also send a POST request to the oauth2/authorize address.

2. The application exchanges the user code for the access token and refresh token, saves them to its storage, and uses these tokens to get access to the ONLYOFFICE Apps API.

3. The application sends the POST request:

{{docspace_address}}/oauth2/token

The parameters that must be specified in the request body depend on the client type.

For client_secret_post

Parameter	Type	Example	Description
client_id	string	695d37b7-18aa-4033-91b4-09690178e99a	The ID of the client that will be used for authorization.
client_secret	string	49487362-7d4a-471f-bbf3-c04e2e1c541f	The secret of the client that will be used for authorization.
grant_type	string	authorization_code	The OAuth grant type.
code	string	OENBaHXhZStQ9eDVIq-1NlHu6luruKqJtCp6Rhg-OFXAeAp4YWoUHtOkGYCPtW7l8T-qtZaoUnmvtHuJbb3d-wgYtHOKhd-nqisoeiO91u-Z9fsnhtiO318mihPflIpV	A temporary authorization code that is sent to the client to be exchanged for a token.
redirect_uri	string	https://redirect-url.com	The URL where the user will be redirected after successful or unsuccessful authentication.

For client with PKCE

For the client with PKCE, the parameters are the same as for client_secret_post, but the client_secret must be replaced with the code_verifier.

Parameter	Type	Example	Description
code_verifier	string	a50883696b67d1e91-e52be26d8b78ae902b354-a4b3a8965affbe30f-c8056c89afa066	The code verifier, a cryptographically random string between 43 and 128 characters long.
