RadioButton

One option of a single-choice set, drawn as a labelled circle. It is a <label> wrapping a visually hidden <input type="radio"> and the kit's own circle icon.

Use this when / not when

• Use for a single option you are placing by hand, usually alongside others that share a name.
• Prefer RadioButtonGroup for a set: it owns the selected value, wires every button to one handler and keeps them apart. Reach for this component only when the options are not a plain list.
• Not for an on/off setting — Checkbox or ToggleButton is that.
• Not for more than a handful of options; a ComboBox is kinder past five or six.

Import

import { RadioButton } from "@onlyoffice/apps-ui-kit/components/radio-button";

Also exported from the root barrel @onlyoffice/apps-ui-kit.

RadioButtonProps is not exported — type a wrapper's props yourself.

Needs ThemeProvider from @onlyoffice/apps-ui-kit/providers/theme for the circle and text colours, which differ between the light and the dark theme.

Stories

Default

A single labelled button, the starting point for any single-choice option; click it to fill in the circle, and change any other prop live in the Controls panel below.

Checked States

The two looks a button can take side by side, so the filled-in choice is easy to tell from the rest: an empty circle and a circle with a dot (isChecked).

Disabled States

A disabled button, empty or filled in, shows an option the user can see but not change: the circle and the label turn grey and clicks are ignored (isDisabled).

Custom Styling

Larger or smaller label text for a button placed in a heading or a dense list: Custom styled at 16px semibold, Small text at 11px light (fontSize, fontWeight).

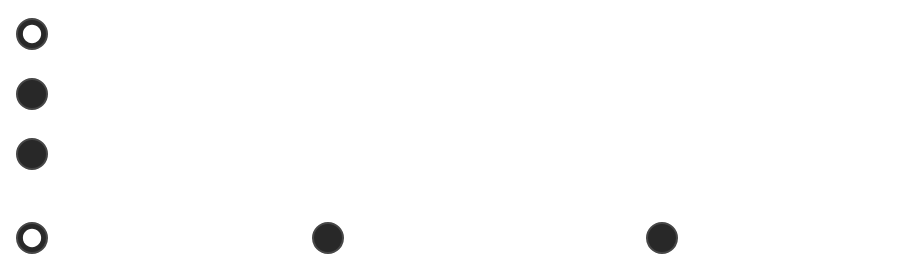

With Spacing

A set of buttons needs room between them, because without a gap they touch:

• Vertical — a column with 12px below every button but the last (spacing, the default orientation)
• Horizontal — a row with 24px before every button but the first (spacing, orientation="horizontal")

The container still lays the buttons out; orientation only decides which side the gap goes on. Pick an option in each set with a click or the arrow keys.

Css Customization

The variables are listed under CSS variables on this page. The example is one checked button, so it shows every variable at once: the violet dot and outline, the light violet fill, the dark violet text and the wider gap. Hover it to see the darker outline.

Minimal example

A set is several buttons sharing one name, each told whether it is the chosen one.

import { useState } from "react";
import { RadioButton } from "@onlyoffice/apps-ui-kit/components/radio-button";

const ROLES = ["Viewer", "Editor", "Room admin"];

export function RolePicker() {
  const [role, setRole] = useState("Viewer");

  return (
    <div>
      {ROLES.map((option) => (
        <RadioButton
          key={option}
          name="role"
          value={option}
          label={option}
          isChecked={role === option}
          spacing="12px"
          onClick={() => setRole(option)}
        />
      ))}
    </div>
  );
}

Props

Property	Type	Description
autoFocus?	boolean	Whether the input takes focus on mount.
className?	string	Applied to the label.
classNameInput?	string	Applied to the visually hidden <input>.
fontSize?	string	Font size of the text beside the button.
fontWeight?	number | string	Font weight of that text.
id?	string	Applied to the label, not to the input.
isChecked?	boolean	Whether the button is filled in. It seeds the component's own state and is re-applied whenever it changes, so it works as a controlled value.
isDisabled?	boolean	Whether the input is disabled and the label greyed out.
label?	ReactNode	What is written beside the button. value is used when this is left out.
name?	string	name of the input. Buttons sharing one behave as a single choice.
onChange?	ChangeEventHandler<HTMLInputElement, HTMLInputElement>	Called on every change of the input. Giving it takes the component's own state handling out of the loop, so isChecked becomes the only thing that moves the dot — and onClick stops firing.
onClick?	(e: React.ChangeEvent<HTMLInputElement> | React.MouseEvent<HTMLInputElement>) => void	Called when the button is clicked — but only while onChange is not given. Passing onChange replaces the internal handler and this never fires.
orientation?	RadioButtonOrientation	Which side the gap is put on. It only moves spacing; it does not lay anything out on its own. Default: "vertical".
spacing?	string	Gap to the neighbouring button, as a CSS length: margin-inline-start when horizontal, margin-block-end when vertical. There is no gap at all without it — the buttons touch.
style?	CSSProperties	Applied to the label.
testId?	string	data-testid of the label. Default: "radio-button".
value?	number | readonly string[] | string	value of the input, and the label when label is left out. It is what a group's onClick reads back off the event.

Recipes

Disabled / read-only

isDisabled disables the input and greys both the circle and the label. There is no read-only state: a radio the user may see but not change has to be disabled, or rendered as text.

import { RadioButton } from "@onlyoffice/apps-ui-kit/components/radio-button";

export function LockedChoice({ chosen }: { chosen: string }) {
  return (
    <RadioButton
      name="plan"
      value={chosen}
      label={`${chosen} (set by your administrator)`}
      isChecked
      isDisabled
    />
  );
}

Fully controlled, with onChange

onChange replaces the component's internal toggle, which is what you want when the value lives in your state — but it also switches onClick off, so move the handler across.

import { useState } from "react";
import { RadioButton } from "@onlyoffice/apps-ui-kit/components/radio-button";

export function ControlledChoice() {
  const [plan, setPlan] = useState("monthly");

  return (
    <div>
      {["monthly", "yearly"].map((option) => (
        <RadioButton
          key={option}
          name="plan"
          value={option}
          label={option}
          isChecked={plan === option}
          spacing="8px"
          onChange={(event) => setPlan(event.target.value)}
        />
      ))}
    </div>
  );
}

Behaviour the types don't state

• onChange and onClick are alternatives, not companions. The component installs its own change handler — which flips an internal isChecked and then calls onClick — only while onChange is absent. Pass onChange and onClick is never called at all.
• It keeps its own checked state. isChecked seeds it and re-applies on every change of the prop, so a click moves the dot even if your state never changes. With onChange the internal toggle is gone and only the prop moves it.
• Without spacing the buttons touch. The gap is a custom property set from the prop, and the rule that uses it is only switched on when the prop is truthy. There is no default gap, whatever older documentation said.
• spacing skips an edge. Horizontally it is not applied to the first button, vertically not to the last, so the row or column is not padded at its ends.
• orientation lays nothing out. It only decides which side spacing is applied to; the buttons follow whatever your container does. Its default here is vertical, while RadioButtonGroup defaults to horizontal.
• id lands on the label, not on the input, so it cannot be the target of an external <label for> — the input is already nested inside this one.
• The input is hidden but focusable (opacity: 0.0001, z-index: -1), and nothing draws a focus ring. A keyboard user moving through the set gets no visible cue.
• label falls back to value, so a button with neither shows nothing beside the circle.

CSS variables

Variable	Default	Effect
--radio-button-gap	8px	Space between the circle and the text
--radio-button-background	theme bg	Fill behind the circle
--radio-button-label-color	theme text	Colour of the text
--radio-button-dot-color	theme text	The filled dot when checked
--radio-button-circle-color	theme grey	The circle's outline
--radio-button-circle-hover-color	theme grey	That outline on hover

A disabled button ignores all of them except --radio-button-gap: it draws its own grey fill, outline, dot and text, and its outline does not change on hover.

--radio-button-spacing is written by the spacing prop; set the prop rather than the variable.

Accessibility

• The markup is right — a real <input type="radio"> inside its <label> — so a screen reader announces a radio button with its checked state, named by the text beside the circle, and the set is reachable with Tab, traversable with the arrow keys and selected with Space as long as the buttons share a name.
• There is no focus ring. The input is hidden with opacity, and no :focus-visible style replaces the browser's own outline, so keyboard users cannot see where they are. Add one in your application until the kit does.
• Nothing groups the set: add a <fieldset> and <legend>, or a container with role="radiogroup" and a label, or the options are announced with no question attached.
• isDisabled disables the input properly, so it drops out of the tab order.

Test ids

Element	data-testid
The label	radio-button, or testId

Related

• RadioButtonGroup — the set, with the selection handled.
• Checkbox — for choices that are not exclusive.
• ToggleButton — for a single on/off setting.
