RadioButtonGroup

A set of radio buttons built from an array, with the selected value handled for you. It renders one RadioButton per option and keeps them in step.

Use this when / not when

• Use for a short list of mutually exclusive choices — a role, a plan, a sort order.
• Not for a single option placed by hand; RadioButton is that.
• Not past five or six options — a ComboBox costs less room and is easier to scan.
• Not for choices that are not exclusive. Checkbox is that.

Import

import { RadioButtonGroup } from "@onlyoffice/apps-ui-kit/components/radio-button-group";

Also exported from the root barrel @onlyoffice/apps-ui-kit.

RadioButtonGroupProps is not exported — type a wrapper's props yourself.

Needs ThemeProvider from @onlyoffice/apps-ui-kit/providers/theme for the buttons' colours.

Stories

Default

The group as most forms use it: a row of options with one chosen. Click another option to move the choice and watch the Actions panel for the value onClick receives; change any other prop live in the Controls panel below.

Vertical Layout

The options stacked in a column only as wide as its longest label (orientation). Suits longer lists and labels too long to sit side by side; without spacing the buttons sit directly under one another.

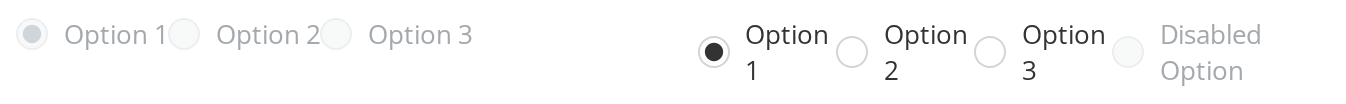

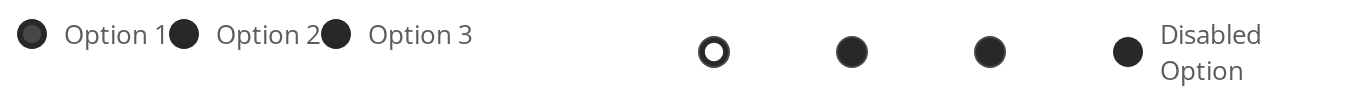

Disabled States

Shows the two ways to take options out of play:

• Left — the whole group greyed out and unclickable at once (isDisabled), for a setting that does not apply right now
• Right — only "Disabled Option" is greyed out (disabled on the option), while the other three stay selectable

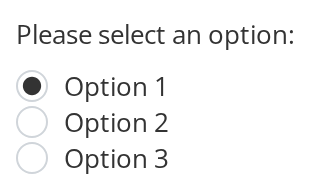

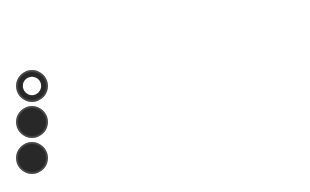

With Text Label

"Please select an option:" is a caption placed inside the group, not a button (an option with type: "text"). Use it for a heading or an instruction above the options, or between two runs of them.

Custom Styling

Larger, bolder labels (fontSize, fontWeight), 20px between the buttons (spacing) and a group 300px wide (width), to match the group to the text and layout around it.

Css Customization

Both caption spacings set on a wrapper around a vertical group that opens with the caption "Choose an option:" -- the variables are listed under CSS variables on this page.

Minimal example

onClick receives the input's change event, so the new value is event.target.value.

import { useState } from "react";
import { RadioButtonGroup } from "@onlyoffice/apps-ui-kit/components/radio-button-group";

export function SortOrder() {
  const [order, setOrder] = useState("name");

  return (
    <RadioButtonGroup
      name="order"
      selected={order}
      spacing="16px"
      onClick={(event) => setOrder(event.target.value)}
      options={[
        { value: "name", label: "Name" },
        { value: "date", label: "Last modified" },
        { value: "size", label: "Size" },
      ]}
    />
  );
}

Props

Property	Type	Description
onClick	(e: React.ChangeEvent<HTMLInputElement>) => void	Called when the choice changes. Despite the name it receives the input's change event, so the new value is event.target.value — always a string, even where the option's value was a number.
options	TRadioButtonOption[]	The options, in order. An entry with type: "text" is a caption, not a button.
className?	string	Applied to the group.
dataTestId?	string	data-testid of the group. Default: "radio-button-group".
id?	string	Applied to the group.
orientation?	RadioButtonOrientation	Which way the options run. Horizontal makes the group a flex row; vertical makes it inline-block, so it shrinks to its content. Note the default differs from a lone RadioButton, which is vertical. Default: "horizontal".
selected?	number | string	Value of the chosen option, compared as a string. It seeds the group's own state and is re-applied whenever it changes.
style?	CSSProperties	Applied to the group.
width?	string	Width of the group, as a CSS length.

Inherited from RadioButtonProps

Declared by components/radio-button and accepted here too.

Property	Type	Description
fontSize?	string	Font size of the text beside the button.
fontWeight?	number | string	Font weight of that text.
isDisabled?	boolean	Whether the input is disabled and the label greyed out.
name?	string	name of the input. Buttons sharing one behave as a single choice.
spacing?	string	Gap to the neighbouring button, as a CSS length: margin-inline-start when horizontal, margin-block-end when vertical. There is no gap at all without it — the buttons touch.

TRadioButtonOption

Property	Type	Description
value	number | string	Value of this option, and what onClick reads off the event. It is also the React key, so two options may not share one.
autoFocus?	boolean	Whether this option's input takes focus on mount.
dataTestId?	string	data-testid of this option; it doubles as the button's test id.
disabled?	boolean	Whether this one option is disabled while the rest stay live.
id?	string	Applied to this option's label element.
label?	ReactNode	What is written beside this option. value is used when it is left out.
type?	"radio" | "text"	"text" renders a caption inside the group instead of a button — a sub-heading between two runs of options. Anything else renders a button.

Recipes

Disabled / read-only

isDisabled on the group disables every option; disabled on an option disables that one. Both end up on the real <input>, so a disabled option leaves the tab order.

import { useState } from "react";
import { RadioButtonGroup } from "@onlyoffice/apps-ui-kit/components/radio-button-group";

export function PlanPicker({ canUpgrade }: { canUpgrade: boolean }) {
  const [plan, setPlan] = useState("free");

  return (
    <RadioButtonGroup
      name="plan"
      selected={plan}
      spacing="16px"
      onClick={(event) => setPlan(event.target.value)}
      options={[
        { value: "free", label: "Free" },
        { value: "pro", label: "Pro", disabled: !canUpgrade },
      ]}
    />
  );
}

Options in labelled runs

An option with type: "text" is not a button but a caption, so one array can carry several labelled runs of choices.

import { useState } from "react";
import { RadioButtonGroup } from "@onlyoffice/apps-ui-kit/components/radio-button-group";

export function AccessPicker() {
  const [access, setAccess] = useState("viewer");

  return (
    <RadioButtonGroup
      name="access"
      orientation="vertical"
      spacing="8px"
      selected={access}
      onClick={(event) => setAccess(event.target.value)}
      options={[
        { value: "people-heading", type: "text", label: "People" },
        { value: "viewer", label: "Viewer" },
        { value: "editor", label: "Editor" },
        { value: "links-heading", type: "text", label: "Links" },
        { value: "public", label: "Anyone with the link" },
      ]}
    />
  );
}

Behaviour the types don't state

• onClick is a change handler. It is wired to the input's onChange, so it is given a ChangeEvent and the new value is event.target.value — a string, even for an option whose value was a number. It is also the one required callback.
• The comparison is stringified. selected is matched against each option with template strings, so 1 and "1" both select the option whose value is 1.
• The group keeps its own selection. selected seeds it and re-applies on change, so the dot moves on click whether or not your state does.
• Without spacing the options touch. The gap comes from each button's own spacing prop, which the group passes straight through, and there is no default.
• orientation defaults to horizontal here and to vertical on a lone RadioButton. Horizontal makes the group a flex row; vertical makes it inline-block, so a vertical group shrinks to its content rather than filling its parent.
• width is applied twice — as the --radio-button-group-width custom property and as an inline width — and style is spread after, so a width in style wins over the prop.
• An option's value is its React key. Two options sharing a value collide, and a caption row uses a fixed key of its own, so two type: "text" entries collide with each other.
• Nothing groups the set semantically. The wrapper is a plain <div>; add a <fieldset> with a <legend>, or role="radiogroup" with a label, yourself.
• An option's dataTestId falls back to its id for the button's test id, while the caption row uses radio-button-group_text.

CSS variables

Variable	Default	Effect
--radio-button-group-subtext-top	16px	Space above a type: "text" caption
--radio-button-group-subtext-bottom	8px	Space below it

--radio-button-group-width is written by the width prop. The buttons' own variables are listed on RadioButton.

Accessibility

• The buttons share a name, so the browser treats them as one radio group: Tab reaches the set and the arrow keys move within it.
• There is no focus ring, because the inputs are hidden with opacity and nothing replaces the browser outline. See RadioButton.
• The group has no accessible name. Wrap it in a <fieldset> with a <legend>, or give the container role="radiogroup" and aria-labelledby.
• A type: "text" caption is a plain paragraph, not a legend, so it does not name the options that follow it for a screen reader.

Test ids

Element	data-testid
The group	radio-button-group, or dataTestId
A caption row	radio-button-group_text, or the option's dataTestId
An option	the option's dataTestId, else its id

Related

• RadioButton — one option, placed by hand.
• Checkbox — for choices that are not exclusive.
• ComboBox — for a longer list of the same choices.
