AsideHeader

Title bar of a side panel or a dialog, with a back arrow, extra icons and the close cross. Both Aside and ModalDialog render one and accept its props, so this page is where those props are explained.

Use this when / not when

• Use it directly only when you are building a panel of your own that should look like the kit's. Inside Aside or ModalDialog the header is already there — pass header, isCloseable and the rest to the panel itself.
• Not as a page heading: it is a 53px bar with a bottom border and side margins meant for a panel. A heading in the page flow is Heading.
• Not for a toolbar of actions. It fits a back arrow, a title, a few icons and a close cross; anything more crowds the title out.

Import

import { AsideHeader } from "@onlyoffice/apps-ui-kit/components/aside/aside-header";

components/index.ts does not list this folder, but it lists aside, and export * is transitive — so the name arrives from @onlyoffice/apps-ui-kit/components/aside and from the root barrel @onlyoffice/apps-ui-kit as well.

Needs ThemeProvider from @onlyoffice/apps-ui-kit/providers/theme above it in the tree for the title colour and the border colour.

Stories

Default

A title and the close cross, the header every side panel starts with; clicks on the cross are logged in the Actions panel. Change any other prop live in the Controls panel below.

With Back Button

A back arrow before the title, for a panel that opens a second level and needs a way back to the first; the arrow calls its own handler, logged in the Actions panel (isBackButton).

With Icons

Two icon buttons between the title and the close cross, for actions on what the panel shows without a toolbar of their own; each icon has its own click handler (headerIcons).

Loading

A skeleton bar in place of the whole header while the panel waits for its data. The close cross goes too, so a panel that may load for long needs another way out (isLoading).

Without Border

The header with no line under it, for a panel whose first block already draws its own separator (withoutBorder).

Custom Height

A 70px header instead of 53px, for a title bar that has to line up with a taller bar next to the panel (headerHeight).

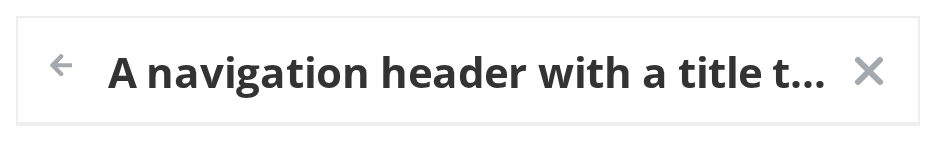

Back And Close

The back arrow and the close cross around a title too long for the panel: the title is cut off with an ellipsis rather than pushing the close cross out of the header.

With Custom Control

A button between the title and the close cross, for an action that needs a label rather than an icon (headerComponent).

Right To Left

The same header under a right-to-left interface: the back arrow moves to the right edge and points right, the title follows it, and the close cross sits on the left. The direction comes from the theme's interfaceDirection (the Direction toolbar); the wrapper also carries dir="rtl" for the rules that read the DOM direction.

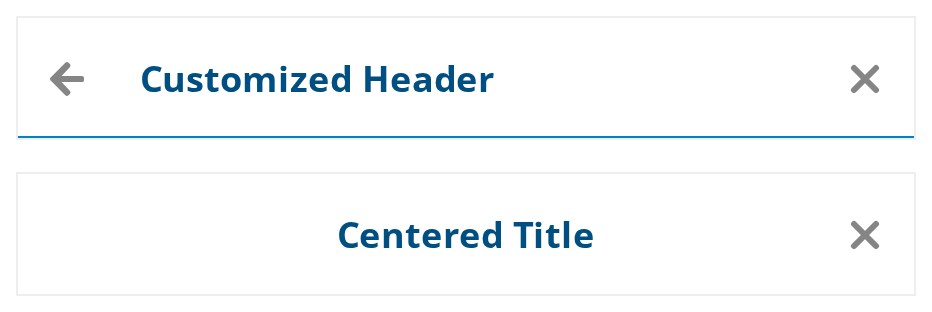

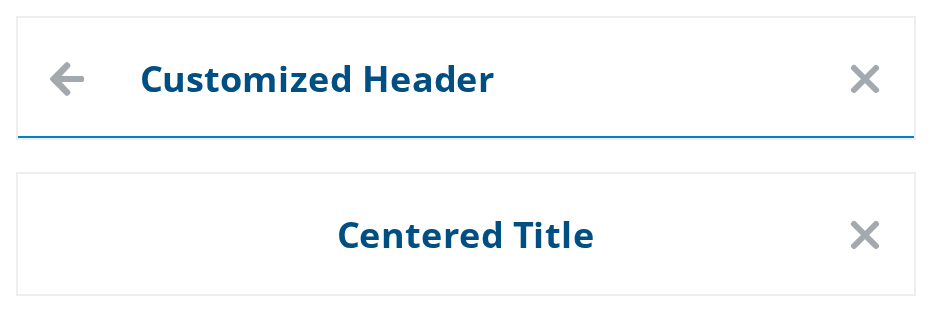

Css Customization

Two headers restyled through CSS variables -- the variables are listed under CSS variables on this page.

• Customized Header — the wrapper's color, border, font size, height and gap; the back arrow is on to show the gap before the title.
• Centered Title — the title taken out of the row and centered, with the line removed. These variables are set through the header's own style, because in the wrapper they would also move the first header's title away from its back arrow.

Minimal example

The close cross is rendered unless you turn it off, so onCloseClick is what makes the header useful on its own.

import { AsideHeader } from "@onlyoffice/apps-ui-kit/components/aside/aside-header";

export function PanelHeader({ onClose }: { onClose: () => void }) {
  return <AsideHeader header="Members" onCloseClick={onClose} />;
}

Props

Property	Type	Description
className?	string	Applied to the header element.
dataTestId?	string	Value of data-testid on the header. Default: "aside-header".
header?	ReactNode	Title of the panel. A string is rendered as bold 21px text; any other node is rendered inside a Heading that truncates with an ellipsis. Nothing is rendered when it is absent, including no placeholder.
headerComponent?	ReactNode	Arbitrary node rendered after the icons and before the close cross, for a control that is not an icon.
headerHeight?	string	Height of the header as a CSS length, applied through the --aside-header-custom-height custom property. Without it the header is 53px.
headerIcons?	HeaderIcon[]	Extra icon buttons between the title and the close cross. Each needs a key, an onClick and either iconNode (JSX, preferred) or url — a URL fetched at runtime, not an asset name. Default: [].
id?	string	Applied to the header element.
isBackButton?	boolean	Whether a back arrow is rendered before the title. It is mirrored in RTL. Default: false.
isCloseable?	boolean	Whether the close cross is rendered. It is the only control that calls onCloseClick. Default: true.
isLoading?	boolean	Replaces the whole header — title, icons and close cross alike — with a skeleton bar. There is no way out of a header that is loading.
onBackClick?	() => void	Called by the back arrow.
onCloseClick?	() => void	Called by the close cross.
style?	CSSProperties	Applied to the header element.
withoutBorder?	boolean	Hides the bottom border, which otherwise spans the full width of the panel regardless of the header's own side margins. Default: false.

Recipes

Loading

isLoading replaces everything, so a header that is loading cannot be closed. Keep the panel closable by something of yours while it loads.

import { AsideHeader } from "@onlyoffice/apps-ui-kit/components/aside/aside-header";

export function LazyPanelHeader({
  ready,
  onClose,
}: {
  ready: boolean;
  onClose: () => void;
}) {
  return (
    <AsideHeader
      header="Room members"
      isLoading={!ready}
      onCloseClick={onClose}
    />
  );
}

A back arrow and extra icons

import { AsideHeader } from "@onlyoffice/apps-ui-kit/components/aside/aside-header";

const INFO_ICON = (
  <svg viewBox="0 0 17 17" width="17" height="17" aria-hidden="true">
    <circle cx="8.5" cy="8.5" r="7" fill="none" stroke="currentColor" />
  </svg>
);

export function DetailsHeader({
  onBack,
  onClose,
  onInfo,
}: {
  onBack: () => void;
  onClose: () => void;
  onInfo: () => void;
}) {
  return (
    <AsideHeader
      header="Document.docx"
      isBackButton
      onBackClick={onBack}
      headerIcons={[{ key: "info", iconNode: INFO_ICON, onClick: onInfo }]}
      onCloseClick={onClose}
    />
  );
}

Behaviour the types don't state

• A string header and a node header are rendered differently. A string becomes bold 21px Text; anything else goes into a Heading. Both stay on one line and cut off with an ellipsis, but only a node title reads --aside-header-color and --aside-header-font-size — a string title keeps the text colour and 21px whatever you set. Wrap it in a <span> to restyle it.
• isLoading hides the close cross. The skeleton replaces the whole content, back arrow and cross included, so the panel has no way out while it is loading.
• The border is wider than the header. The header has margin: 0 16px, and the bottom border is drawn by an ::after of calc(100% + 32px) pulled 16px past each side, so it reaches the panel's edges. withoutBorder removes it.
• headerHeight is written as a custom property in an effect, not as a style, and it is only ever set — clearing the prop removes the class that reads it, but the property stays on the element.
• The close cross carries a hard-coded English aria-label of "close". It is not translated, and nothing else in the header has a name at all.
• The element is a <div>, not a <header>, and takes no landmark role.
• An icon in headerIcons given a url hands it to IconButton's iconName, which fetches it at runtime; iconNode renders JSX inline and needs no request.
• While isLoading, the skeleton's own data-testid of rectangle-skeleton wins over the loader the header asks for, because RectangleSkeleton writes its test id last.

CSS variables

Set these on the header or an ancestor; each is read through a bridge variable, so the theme's own value is the fallback.

Variable	Default	Effect
--aside-header-color	theme text	Colour of a node title; a string title ignores it
--aside-header-border	theme border	Colour of the bottom border
--aside-header-height	53px	Height of the bar, unless headerHeight is given
--aside-header-custom-height	53px	Height applied when headerHeight is given
--aside-header-font-size	21px	Size of a node title; a string title stays 21px
--aside-header-margin	0 16px	Margin around the bar
--aside-header-gap	6px	Gap between the parts
--aside-header-justify	space-between	justify-content of the row; no visible effect while the close cross is shown, whose automatic margin takes the free space
--aside-header-border-display	""	content of the pseudo-element that draws the bottom border; none removes the line
--aside-header-title-position	static	position of the title, for centring it
--aside-header-title-inset	auto	inset-inline-start of the title
--aside-header-title-transform	none	transform of the title
--aside-header-title-text-align	start	text-align of the title; visible only on a title wider than its text

--aside-header-custom-height is the exception to setting a variable on an ancestor: the theme rules redefine it on the header itself, so only headerHeight changes it.

--aside-header-margin moves the bar but not its border, which keeps reaching 16px past each side; any value other than 0 16px leaves the line short of the panel's edges or overflowing them.

To centre the title, take it out of the row: --aside-header-title-position: absolute, --aside-header-title-inset: 50% and --aside-header-title-transform: translateX(-50%). Set these on the header's own style rather than on a shared ancestor, where they would also pull a neighbouring header's title away from its back arrow.

Accessibility

• The header is a plain <div>: no <header> element, no role="banner", and the title is not associated with the panel. A dialog that needs an accessible name has to supply one itself.
• The close cross is an IconButton, which renders a <div> — it has an aria-label but no button role, no tab stop and no Enter or Space activation. The header is not operable by keyboard.
• The back arrow and the headerIcons are IconButtons too, and have not even the label: no name, no role and no tab stop.
• That aria-label is the literal string "close", in English, whatever the locale.
• The title, string or node, is truncated with an ellipsis, so a long one is unreadable rather than wrapped; keep titles short.

Test ids

Element	data-testid
The header	aside-header, overridable with dataTestId
The back arrow	aside_header_back_icon_button
The close cross	aside_header_close_icon_button
The icon strip	icons-container

While isLoading, the header's only child is the skeleton, which carries rectangle-skeleton.

Related

• Aside — the panel this header belongs to, which accepts these props.
• ModalDialog — the dialog, whose header is this one.
• IconButton — what the cross, the arrow and headerIcons are made of.
