ProgressBar

A labelled bar for an operation whose progress you can measure, with a status or error line under it. It is three stacked lines — label, bar, status — and it is always as wide as its container.

Use this when / not when

• Use when you can say how far along the work is: an upload, a conversion, a bulk action.
• Use isInfiniteProgress when you cannot, and the operation still has its own place on the screen — but read what it does to the announced value below.
• Not for a page-wide wait with nothing to show — that is TopLoaderService at the top of the window or AppLoader over it.
• Not for dimming a form while it saves — LoaderWrapper.
• It is not a slider. Nothing here is interactive, and there is no way to click a position.

Import

import { ProgressBar } from "@onlyoffice/apps-ui-kit/components/progress-bar";

Also exported from the root barrel @onlyoffice/apps-ui-kit.

Needs ThemeProvider above it in the tree. The track and fill colours are declared only under the light and dark classes it puts on <body>, and a colour that does not resolve leaves the element with no background at all — an invisible bar, not a default-coloured one. Setting --progress-bar-track and --progress-bar-fill yourself is the other way out.

Stories

Default

Use it for an operation whose progress you can measure: the label names the operation and the fill shows how far it has got (percent, label). Change any other prop live in the Controls panel below.

With Status

Add a status line when the reader needs more than the fill tells them — how many items are done, what is being processed now (status).

With Error

When the operation fails, the message takes the place of the status line in the error colour, and the bar stays where it stopped (error).

Infinite Progress

Use it when the operation cannot report how far it has got: a short strip slides across the track until the bar is removed (isInfiniteProgress).

Complete

The finished state: the track is filled completely and the status line confirms the result (percent={100}).

Preparation Portal

Use PreparationPortalProgress for a full-page wait where the number itself matters: a taller bar with the percentage printed in its middle and a centred caption below (percent, text). The percentage turns from dark to light once the fill passes 50%; move percent in the Controls panel below to see it.

Right To Left

The bar under a right-to-left interface: the label and status line align to the right, the fill grows from the right edge, and the infinite strip in the second bar slides from right to left. The direction comes from the theme's interfaceDirection (the Direction toolbar); the wrapper also carries dir="rtl" for the rules that read the DOM direction.

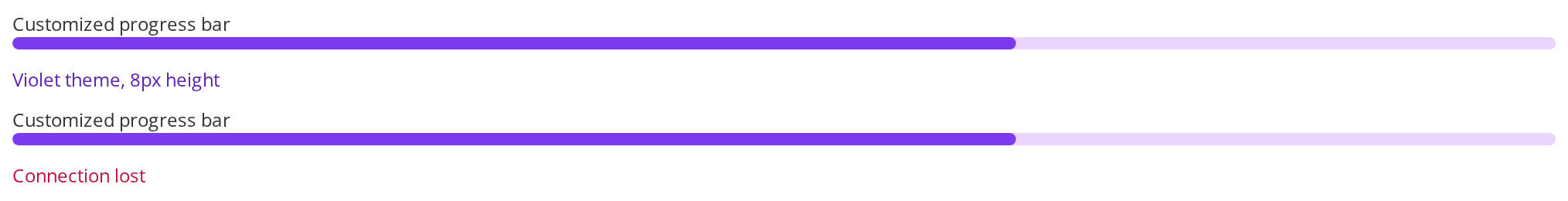

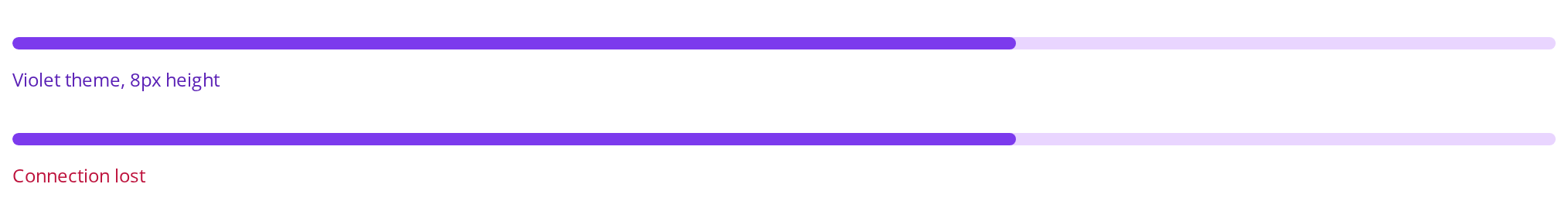

Css Customization

The variables are listed under CSS variables on this page; the example sets every one of them on one wrapper.

The first bar shows the track, fill, size, radius, margin and status colour; the second sets error to show --progress-bar-error-text, since an error takes the place of the status line.

Minimal example

import { useEffect, useState } from "react";

import { ProgressBar } from "@onlyoffice/apps-ui-kit/components/progress-bar";

export function Upload() {
  const [percent, setPercent] = useState(0);

  useEffect(() => {
    const id = setInterval(
      () => setPercent((value) => (value >= 100 ? 100 : value + 10)),
      300,
    );
    return () => clearInterval(id);
  }, []);

  return <ProgressBar percent={percent} label="Uploading Report.docx" />;
}

Props

Property	Type	Description
percent	number	How far along the operation is, 0 to 100. Anything above 100 is clamped; a negative number is not, and reaches aria-valuenow as it stands.
className?	string	Added after the component's own class on the bar element, not on the outer container.
error?	string	Line of text under the bar in the error colour. It replaces status whenever both are given; nothing else about the bar changes.
isInfiniteProgress?	boolean	Replaces the filled portion with a strip that slides across the track for ever. percent is still what aria-valuenow reports, so pass the label instead of a number a reader can act on.
label?	string	Line of text above the bar. It is also the bar's title and its aria-label, so without it the progress bar has no accessible name.
status?	string	Line of text under the bar — "3 of 4 files processed". It is hidden while error is set, which takes the same slot.
style?	CSSProperties	Inline style of the outer container — the label, the bar and the status line together. The bar itself is styled through the --progress-bar-* custom properties.

Recipes

Error

error takes the same line as status and wins over it. The bar itself does not change — it stays where it stopped, in the ordinary fill colour — so say in the text what happened.

import { ProgressBar } from "@onlyoffice/apps-ui-kit/components/progress-bar";

export function FailedUpload() {
  return (
    <ProgressBar
      percent={30}
      label="Report.docx"
      status="Uploading"
      error="The connection was lost"
    />
  );
}

A wait with no measurable end

isInfiniteProgress replaces the filled portion with a strip that slides across the track for ever. Give it a label: the bar carries no other clue about what is happening.

import { ProgressBar } from "@onlyoffice/apps-ui-kit/components/progress-bar";

export function Converting() {
  return <ProgressBar percent={0} label="Converting" isInfiniteProgress />;
}

A thicker, differently coloured bar

Six custom properties cover the shape and the colours, and they override the theme rather than supplement it, so a bar styled this way looks the same in both themes.

import type { CSSProperties } from "react";

import { ProgressBar } from "@onlyoffice/apps-ui-kit/components/progress-bar";

export function ThickBar() {
  return (
    <div
      style={
        {
          "--progress-bar-size": "8px",
          "--progress-bar-radius": "8px",
          "--progress-bar-track": "#e9d5ff",
          "--progress-bar-fill": "#7c3aed",
        } as CSSProperties
      }
    >
      <ProgressBar percent={65} label="Indexing" />
    </div>
  );
}

Behaviour the types don't state

• Without a theme provider the bar is invisible. Both colours resolve through variables that exist only under the provider's light and dark classes, and a failing var() throws away the whole background-color declaration — the track and the fill both fall back to transparent.
• The fill is a different colour in each theme, and not a matching one: the kit's blue under the light theme, the warning orange under the dark one. Set --progress-bar-fill if a progress bar should not look like a warning at night.
• It brings its own spacing. 10px above the label and 8px below the bar, and the label's line is rendered even when there is no label — so an unlabelled bar still starts 10px down. The bottom margin is --progress-bar-bottom-margin; the top one is not adjustable.
• percent is clamped above but not below. Over 100 becomes 100; a negative number makes the width declaration invalid, so the bar reads as empty while aria-valuenow reports the negative value.
• className and style land in different places: className on the bar, style on the container around all three lines.
• Extra DOM attributes do not compile. The props type is closed — no id, no data-*, no event handlers — even though the component spreads a rest object onto the bar.
• The stylesheet's --progress-percent does nothing. The width of the fill is written as an inline style, which beats the rule that reads that property.
• It mirrors in a right-to-left interface. The fill grows from the right edge, and the sliding strip of the infinite mode travels right to left. Both follow the theme provider — its data-dir on <html> and the direction it gives <body> — so no dir attribute is needed.
• The fill transitions over 0.6s, so a bar driven in large steps keeps moving after the number has changed.

Sub-components

PreparationPortalProgress

A second, unrelated bar: 24px tall with the percentage written inside it, used on the portal's "preparing your workspace" screen. It is exported from the same folder and shares none of ProgressBar's props or custom properties.

Property	Type	Description
percent	number	How far along the operation is, 0 to 100. It is not clamped: a larger number overflows the track.
aria-label?	string	Accessible name of the outer element. Not set by default.
aria-valuemax?	number	Upper bound reported to assistive technology. Not set by default.
aria-valuemin?	number	Lower bound reported to assistive technology. Not set by default.
aria-valuenow?	number	Current value reported to assistive technology. Not set by default, and not derived from percent.
className?	string	Added to the outer element, replacing nothing — this component has no class of its own there.
data-percent?	number	Written to the outer element as-is; nothing in the component reads it.
data-testid?	string	Replaces the outer element's data-testid.
role?	string	Landmark role of the outer element. Nothing is set by default, so pass "progressbar" yourself.
text?	string	Centred line of text under the bar.

• It announces nothing by default. The role and aria-* props exist because the component sets none of them; pass them or the bar is a pair of anonymous <div>s.
• percent is not clamped here. Over 100 the filled line simply overflows its track.
• The number inside the bar is absolutely positioned near the middle and flips from dark to light once percent passes 50, so it stays readable over the fill.
• The bar carries a 16px bottom margin of its own, and the text under it is centred.

CSS variables

Variable	Default	Effect
--progress-bar-track	theme grey	Background of the track
--progress-bar-fill	theme blue (orange in the dark)	Colour of the filled portion, and of the sliding strip in infinite mode
--progress-bar-text	theme text colour	Colour of the status line
--progress-bar-error-text	theme error colour	Colour of the error line
--progress-bar-size	4px	Height of the bar
--progress-bar-radius	3px	Corner radius of bar and fill
--progress-bar-bottom-margin	8px	Space between the bar and the text

--progress-bar-error-text shows only while error is set, since the error line takes the place of the status line. PreparationPortalProgress reads none of these.

Accessibility

• The bar is a role="progressbar" with aria-valuemin, aria-valuemax and aria-valuenow, and its accessible name is the label — without a label it has none, and a screen reader announces a bare percentage.
• The infinite mode is not marked indeterminate. aria-valuenow keeps reporting whatever percent is, usually 0, while the strip slides; a screen reader is told the work has not started. Either keep percent meaningful or hide the bar from assistive technology and announce the state in text.
• The status and error lines are ordinary text, not a live region: a change is not announced. Put them in an aria-live="polite" container of your own when the outcome matters.
• The error state is carried by the colour of one line and by its wording — nothing sets aria-invalid or a role — so the wording has to be enough on its own.

Test ids

Element	data-testid
The bar	progress-bar
The filled portion	progress-bar-percent
The sliding strip (infinite)	progress-bar-animation
PreparationPortalProgress	preparation-portal-progress

Only the last is settable, through that component's data-testid prop. The bar also carries data-progress, and data-status or data-error when either is set.

Related

• LoaderWrapper — dims the area the operation belongs to.
• TopLoaderService — the page-wide bar for a wait with no number.
• Loader — a spinner when there is nothing to measure.
