RoomTile

Tile for a room: the logo and name on top, and the room's tags along the bottom. It is BaseTile with a tag row built for it, and the tag row is the part that makes it worth using rather than building your own.

Use this when / not when

• Use for a room in a tile listing, where the tags and the room type should be visible and clickable.
• Not for a folder or a document — FolderTile and FileTile.
• Not for a template — TemplateTile shows the owner and the storage instead of tags.
• Not for a card of your own — BaseTile is the same shell with an empty lower half.
• Four props are required and have no sensible empty value: columnCount, selectTag, selectOption and getRoomTypeName. The last one is how a room type becomes a readable label; the kit does not know the portal's room types.

Import

import { RoomTile } from "@onlyoffice/apps-ui-kit/components/tiles/room-tile";

components/index.ts does not list this folder, but it lists tiles, and export * is transitive — so the name arrives from @onlyoffice/apps-ui-kit/components/tiles and from the root barrel @onlyoffice/apps-ui-kit as well.

Needs ThemeProvider for its colours and TranslationProvider for two labels it asks the kit's own translation hook for: the three-dot button's tooltip, and the NoTags line an AI agent gets when it has no tags.

Stories

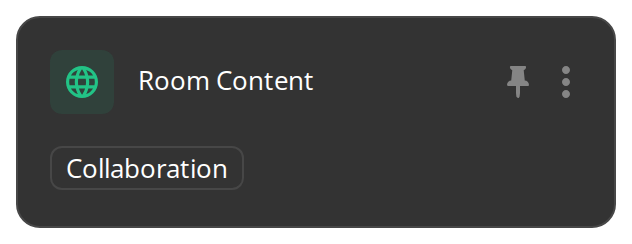

Default

A room with one tag: the logo, the name with a pin badge, the menu, and the tag row below. Hover the logo and tick the checkbox to select the room, click anywhere else or on the tag to see the callbacks in the Actions panel, and change any other prop live in the Controls panel below.

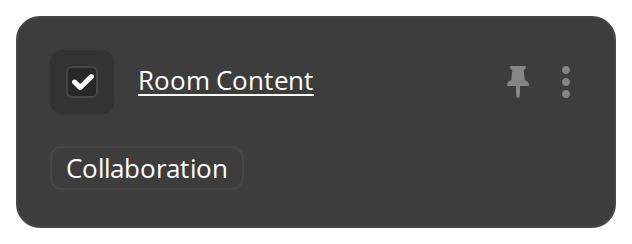

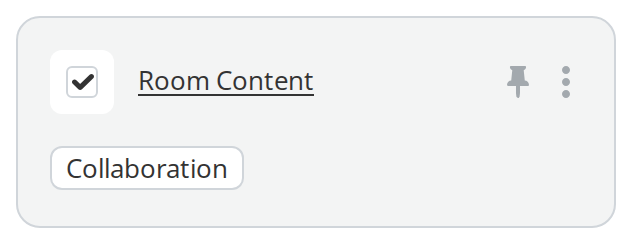

Checked

A selected room, as it looks among others the reader has picked: the checkbox stays ticked in place of the logo and the tile and its tags are tinted (checked).

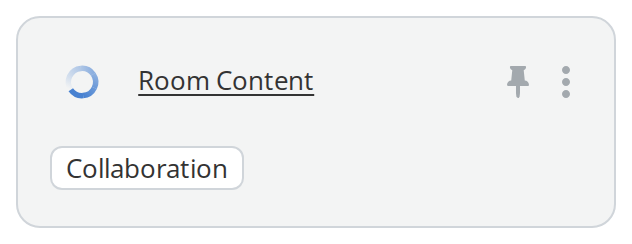

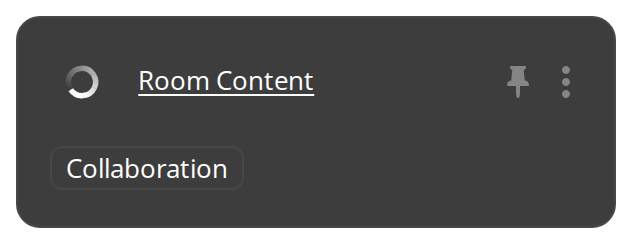

In Progress

A room that is busy, being created or copied: a small loader stands where the logo and the checkbox were (inProgress).

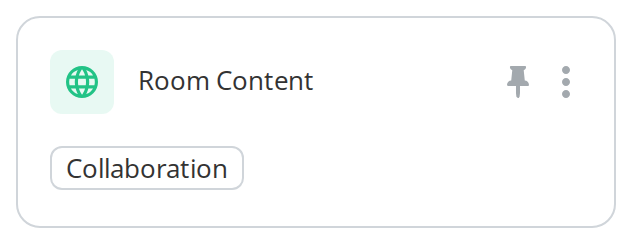

Blocking Operation

A room an operation is running over, which must not be picked or opened until it ends: hover it, click it or right-click it and nothing happens (isBlockingOperation). It looks the same as an idle room, so show the operation somewhere else.

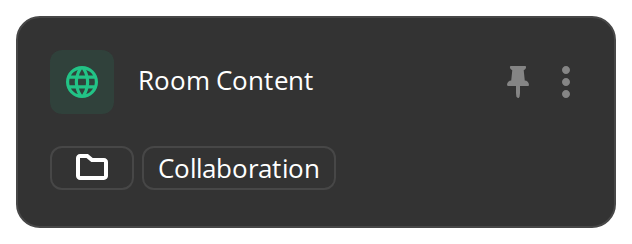

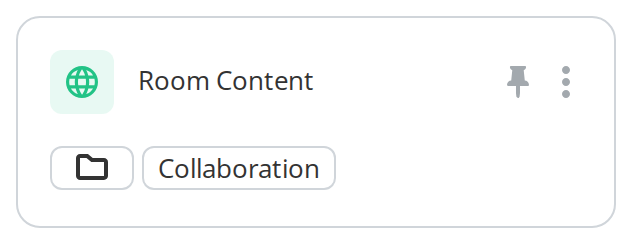

Generated Tags

A room with no tags of its own, kept on a connected storage: the tile makes two tags for it: first the storage, drawn as its icon alone (providerType, thirdPartyIcon), then the room type (getRoomTypeName). Click either to see selectOption in the Actions panel.

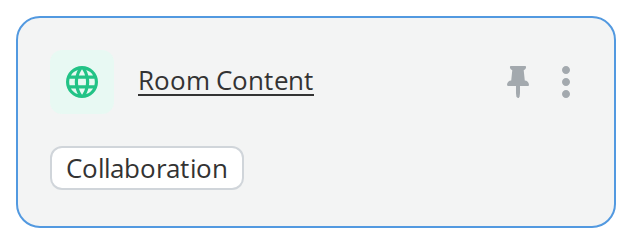

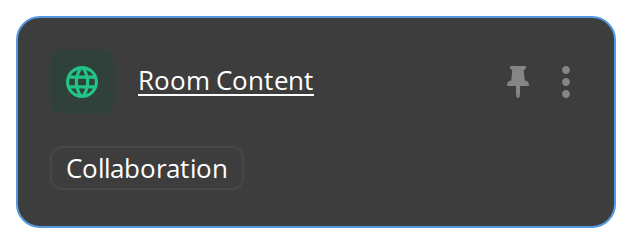

With Hotkey Border

The tile the keyboard is on while the reader moves through the grid with the arrow keys: its border turns the accent colour (showHotkeyBorder). The tile does not handle the keys itself.

Renaming State

A room whose name is being edited: the logo and the checkbox go, so the name can become a text field, and hovering no longer tints the tile (isEdit).

Custom Bottom Row

A room whose bottom row is the host's own: here a line of text that counts the tags and changes when the pointer is over the tile (customBottomContent). The tile no longer draws its tags.

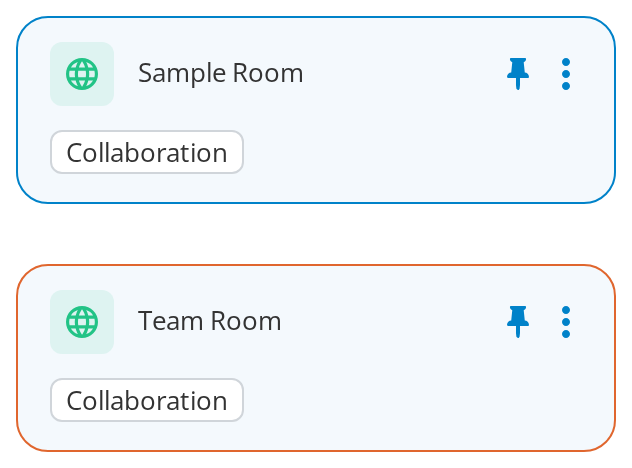

Css Customization

The variables are listed under CSS variables on this page.

Two instances:

• Sample Room — for every variable but the hotkey colour; hover it for --tile-hover-bg and --tile-tag-hover-bg.
• Team Room — showHotkeyBorder, for --tile-hotkey-color.

Minimal example

import { RoomTile } from "@onlyoffice/apps-ui-kit/components/tiles/room-tile";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Text } from "@onlyoffice/apps-ui-kit/components/text";

const room = {
  id: "r1",
  title: "Marketing",
  roomType: "2",
  isRoom: true,
  contextOptions: [],
};

export function SimpleRoomTile() {
  return (
    <RoomTile
      item={room}
      contextOptions={[]}
      columnCount={2}
      selectTag={() => {}}
      selectOption={() => {}}
      getRoomTypeName={(type) => (type === "2" ? "Collaboration room" : "Room")}
    >
      <TileContent>
        <Text truncate>{room.title}</Text>
      </TileContent>
    </RoomTile>
  );
}

Props

Property	Type	Description
columnCount	number	How many columns the tag row is laid out in. Required.
contextOptions	ContextMenuModel[]	The menu's entries. Required — but see item.
getRoomTypeName	(type: string, t: TFunction | ((key: string, interpolation?: Record<string, string | number>) => string)) => string	Turns a room type into the label of the tag shown when the room has no tags of its own. It is handed the kit's own translation function. Required.
item	RoomItem	The room this tile stands for. Its tags, providerType and isAIAgent decide what the bottom row shows, and its contextOptions key decides whether the three-dot button appears.
selectOption	(option: SelectOption) => void	Called when the generated third-party or room-type tag is clicked, with which of the two it was. Required.
selectTag	(tag: TagClickEvent) => void	Called with a clicked tag, but only one that carries both a label and a room type — a plain string tag never reaches it, and neither does any tag on an AI agent that has none of its own.
badges?	ReactNode	Badges drawn beside the content, in the upper half.
checked?	boolean	Whether the tile is selected.
children?	ReactNode	The tile's content. Only the first element is rendered, above the tags.
customBottomContent?	(isHovered: boolean, tags: Array<TagType | string>) => React.ReactNode	Replaces the whole tag row. It is called on every render with the hover state and the tags the component worked out.
dataTestId?	string	Value of data-testid on the outer element. Default: "tile".
element?	ReactNode	The room logo beside the checkbox. Without it neither the logo nor the checkbox is rendered at all.
getContextModel?	() => ContextMenuModel[]	Builds the menu shown on right-click. Without it the right-click menu never opens.
indeterminate?	boolean	Draws the checkbox in its indeterminate state.
inProgress?	boolean	Replaces the logo and the checkbox with the kit's track loader.
isActive?	boolean	Whether the tile is the one being acted on, which keeps its hover background.
isBlockingOperation?	boolean	Turns the pointer off while an operation is running over the tile: hover, clicks and right-clicks stop reaching it. It does not change how the tile looks.
isEdit?	boolean	Renaming state: it removes the logo and the checkbox.
onSelect?	(checked: boolean, item: RoomItem) => void	Called with the new checked state and the item when the checkbox changes, or when the logo is tapped on a screen narrower than 600px.
showHotkeyBorder?	boolean	Draws the accent outline that marks the tile the keyboard is on.
thumbnailClick?	(e: React.MouseEvent) => void	Called with the event on a click anywhere on the tile except the checkbox, the tags, the badges, an open dialog, the three-dot button and the menu. It is the tile's open handler, not a thumbnail's.

Recipes

Opening the room

thumbnailClick is the tile's open handler despite its name: it fires on a click anywhere except the checkbox, the tags, the badges, an open dialog, the three-dot button and the menu.

import { RoomTile } from "@onlyoffice/apps-ui-kit/components/tiles/room-tile";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Text } from "@onlyoffice/apps-ui-kit/components/text";

const room = {
  id: "r1",
  title: "Marketing",
  roomType: "2",
  contextOptions: [],
};

export function OpenableRoomTile({ open }: { open: () => void }) {
  return (
    <RoomTile
      item={room}
      contextOptions={[]}
      columnCount={2}
      thumbnailClick={open}
      selectTag={() => {}}
      selectOption={() => {}}
      getRoomTypeName={() => "Collaboration room"}
    >
      <TileContent>
        <Text truncate>{room.title}</Text>
      </TileContent>
    </RoomTile>
  );
}

Filtering from a tag

A room with tags of its own gets them in the bottom row; a room without gets one generated tag carrying its type. Clicking a real tag reaches selectTag, clicking a generated one reaches selectOption with which of the two kinds it was.

import { RoomTile } from "@onlyoffice/apps-ui-kit/components/tiles/room-tile";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Text } from "@onlyoffice/apps-ui-kit/components/text";

const room = {
  id: "r1",
  title: "Marketing",
  roomType: "2",
  tags: [{ label: "Q4", roomType: 2 }],
  contextOptions: [],
};

export function FilterableRoomTile({
  filterByTag,
  filterByType,
}: {
  filterByTag: (label: string) => void;
  filterByType: (value: string) => void;
}) {
  return (
    <RoomTile
      item={room}
      contextOptions={[]}
      columnCount={2}
      selectTag={(tag) => filterByTag(String(tag.label))}
      selectOption={(option) => filterByType(option.value)}
      getRoomTypeName={() => "Collaboration room"}
    >
      <TileContent>
        <Text truncate>{room.title}</Text>
      </TileContent>
    </RoomTile>
  );
}

Your own bottom row

customBottomContent replaces the tag row entirely. It is called on every render with the hover state and the tags the component worked out, so you can keep those and lay them out differently.

import { RoomTile } from "@onlyoffice/apps-ui-kit/components/tiles/room-tile";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Text } from "@onlyoffice/apps-ui-kit/components/text";

const room = {
  id: "r1",
  title: "Marketing",
  roomType: "2",
  contextOptions: [],
};

export function RoomTileWithFooter() {
  return (
    <RoomTile
      item={room}
      contextOptions={[]}
      columnCount={2}
      selectTag={() => {}}
      selectOption={() => {}}
      getRoomTypeName={() => "Collaboration room"}
      customBottomContent={(isHovered, tags) => (
        <Text fontSize="12px">
          {isHovered ? "Open room" : `${tags.length} tag(s)`}
        </Text>
      )}
    >
      <TileContent>
        <Text truncate>{room.title}</Text>
      </TileContent>
    </RoomTile>
  );
}

Behaviour the types don't state

• thumbnailClick is the tile's click handler, not a thumbnail's. There is no thumbnail here. It fires for a click anywhere in the tile except inside .checkbox, .tags, .advanced-tag, .badges, #modal-dialog, .expandButton, .p-contextmenu, or the element holding the logo and the checkbox.
• The bottom row is always populated. With item.tags it shows them; without, it shows one generated tag carrying the room type from getRoomTypeName — or, for an AI agent, a NoTags label from the translations.
• A third-party room gets an extra tag first, built from providerKey or providerType, and clicking it calls selectOption with typeProvider.
• selectTag is not called for every tag. A tag only reaches it if it carries both a label and a roomType, so a plain string tag is inert; and on an AI agent with no tags of its own, nothing reaches it at all.
• The menu's own props are missing from this type. hideContextMenu and tileContextClick are forwarded to the base tile untouched, but RoomTileProps does not declare either, so TypeScript rejects them on the JSX element and there is no way to be told when the menu closes.
• A plain click does not select. Unlike the file and folder tiles, selection here is the checkbox, or a tap on the logo below 600px.
• The three-dot button needs the flag on the item as well as the prop, and the right-click menu needs getContextModel — see BaseTile, which this component wraps.
• Only the first child is rendered, above the badges; the rest of children is dropped.
• isBlockingOperation turns off the pointer and nothing else: hover, clicks and right-clicks stop reaching the tile, but it looks exactly like an idle one, so show the operation elsewhere.
• element is the switch for the whole corner: without it neither the logo nor the checkbox is rendered, and the tile cannot be selected.

CSS variables

Variable	Default	Effect
--tile-bg	the theme's tile background	Background of the tile, and of the box behind the logo
--tile-hover-bg	the checked background	Background of the tile on hover, when checked and under isActive
--tile-tag-hover-bg	white; the checked background in the dark theme	Background of the tags on hover (not under isEdit), when checked and under isActive
--tile-icon-color	the theme's icon colour	Fill of the three-dot button and of a pin badge (.is-pinned inside .badges)
--tile-border-style	the theme's room border	Border of the tile
--tile-radius	12px	Corner radius
--tile-padding	16px 0	Padding of the tile
--tile-row-gap	16px	Gap between the name row and the tag row
--tile-hotkey-color	the theme's hotkey colour	Border colour under showHotkeyBorder

All but --tile-tag-hover-bg and the logo box are read by BaseTile, which this component wraps; its section has the details. Hovering the tile also underlines the name when the content is a link, and that underline has no variable.

Accessibility

• The tile is a plain <div> with click and context-menu handlers: no role, no tabindex, no key handling. The checkbox and whatever you put in the content are the only focusable parts.
• The tags are the kit's Tags; a tag that filters the listing is not a button, so filtering by tag is pointer-only.
• thumbnailClick is not reachable from the keyboard — make the room's name a real link if the room has to be openable without a mouse.
• The room type shown in the generated tag is the only place the type is stated; it is a label, not an accessible description of the tile.

Test ids

Element	data-testid
Outer element	tile, overridden by dataTestId

The tags, the checkbox and the menu carry their own components' ids.

Related

• Tiles — the family this belongs to.
• BaseTile — the shell this is built on.
• RoomIcon — what usually goes in element.
