TemplateTile

Tile for a room template: the name on top, and an owner and storage pair along the bottom. It is BaseTile with a two-column caption in its lower half, where the room tile puts its tags.

Use this when / not when

• Use for a room template in a tile listing, where the owner matters and the tags do not.
• Not for a room — RoomTile shows the tags and the room type.
• Not for a folder or a document — FolderTile and FileTile.
• Not for a card of your own — BaseTile is the same shell with an empty lower half.
• The labels are not yours to choose. "Owner" and "Storage" come from the kit's own translations under exactly those keys; there is no prop for either.
• The storage figure is not rendered by this component. showStorageInfo adds the label; the value needs a SpaceQuotaComponent of your own beside it.

Import

import { TemplateTile } from "@onlyoffice/apps-ui-kit/components/tiles/template-tile";

components/index.ts does not list this folder, but it lists tiles, and export * is transitive — so the name arrives from @onlyoffice/apps-ui-kit/components/tiles and from the root barrel @onlyoffice/apps-ui-kit as well.

Needs ThemeProvider for its colours and TranslationProvider for the two captions and the three-dot button's tooltip, which it asks the kit's own translation hook for; without it the lower half is two empty lines.

Stories

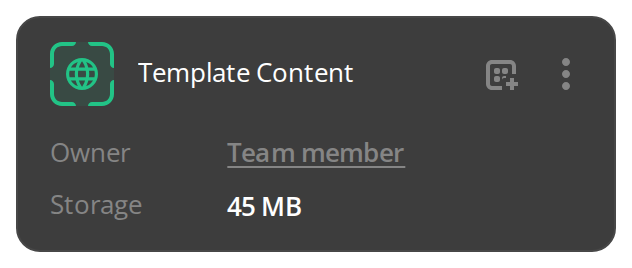

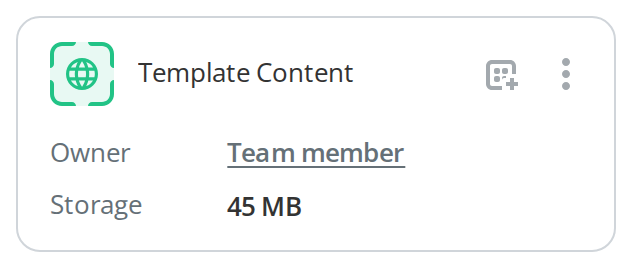

Default

A template with its owner and the storage it uses: the icon, the name with a create-room button, the menu, and the two lines below. Hover the icon and tick the checkbox to select it, click the owner to see openUser in the Actions panel, and change any other prop live in the Controls panel below.

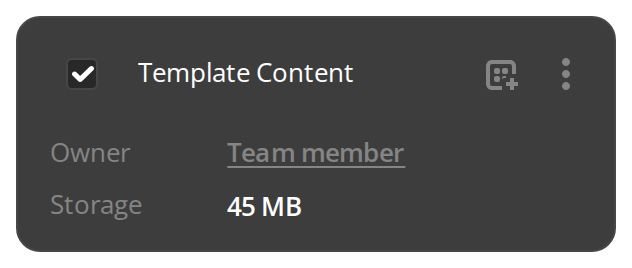

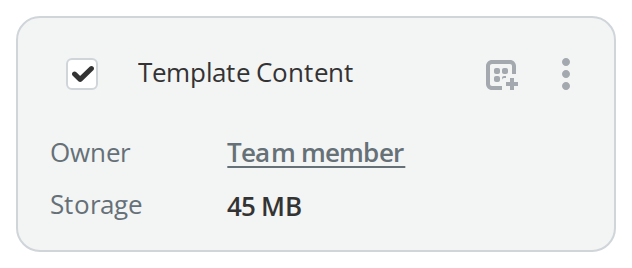

Checked

A selected template, as it looks among others the reader has picked: the checkbox stays ticked in place of the icon and the tile is tinted (checked).

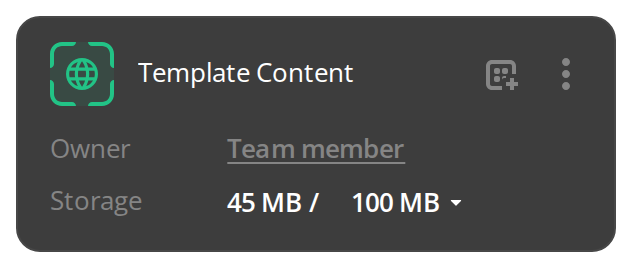

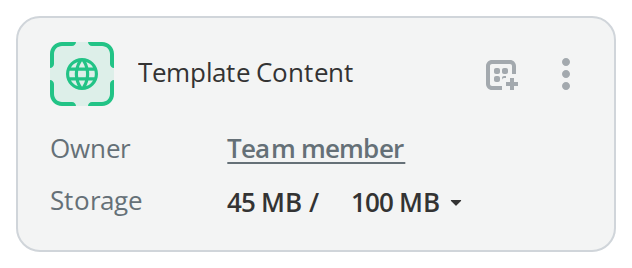

With Space Quota

A template with a storage limit the reader may change: the storage line shows the space used and a drop-down with the limit, both drawn by the host's quota component (showStorageInfo, SpaceQuotaComponent, security.EditRoom).

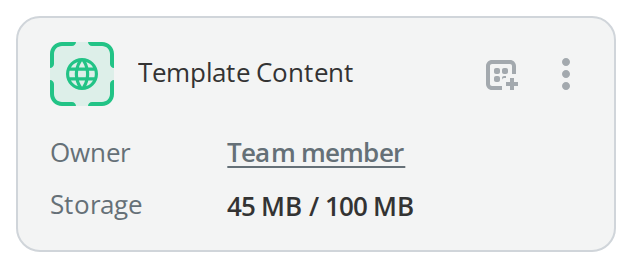

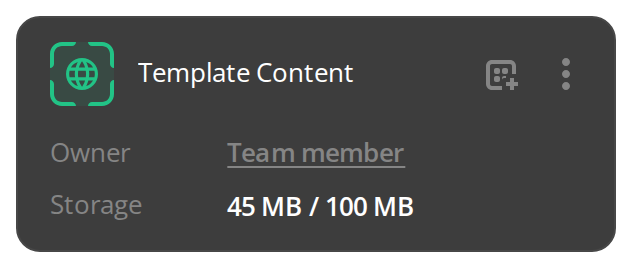

With Read Only Quota

The same template for a reader who may not edit it: the tile tells the quota component the figure is read-only, so it shows the used space and the limit as plain text (security.EditRoom: false).

Blocking Operation

A template an operation is running over, which must not be picked or opened until it ends: hover it, click it or right-click it and nothing happens (isBlockingOperation). It looks the same as an idle template, so show the operation somewhere else.

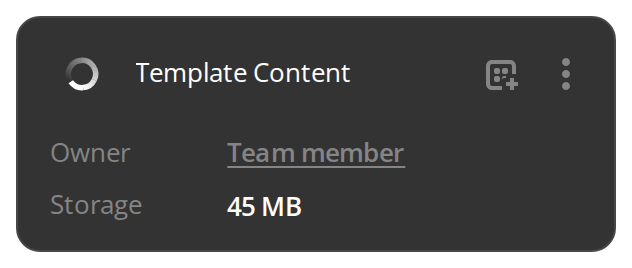

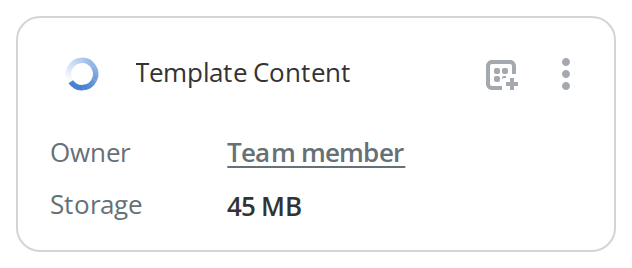

In Progress

A template that is busy, being saved or copied: a small loader stands where the icon and the checkbox were (inProgress).

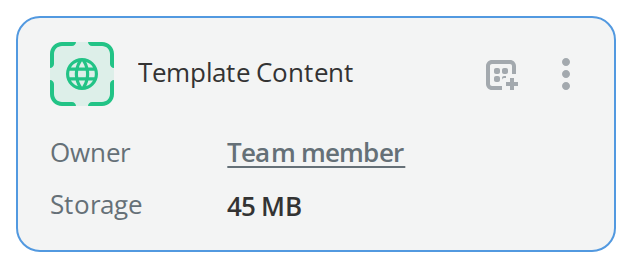

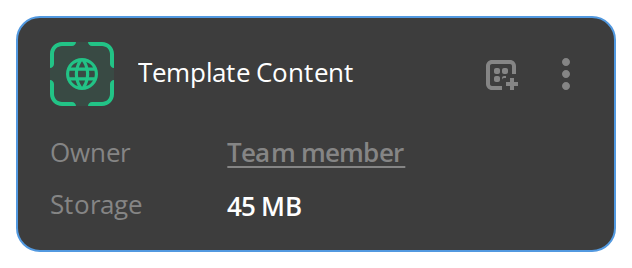

With Hotkey Border

The tile the keyboard is on while the reader moves through the grid with the arrow keys: its border turns the accent colour (showHotkeyBorder). The tile does not handle the keys itself.

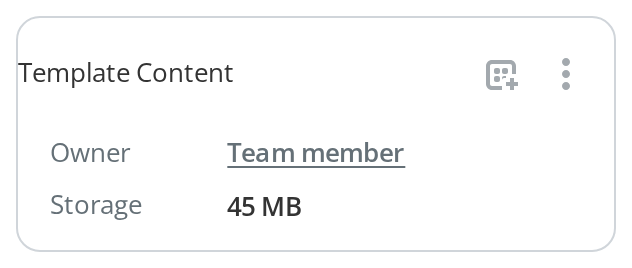

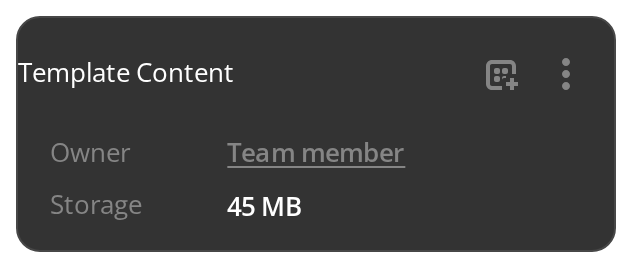

Renaming State

A template whose name is being edited: the icon and the checkbox go, so the name can become a text field, and hovering no longer tints the tile (isEdit).

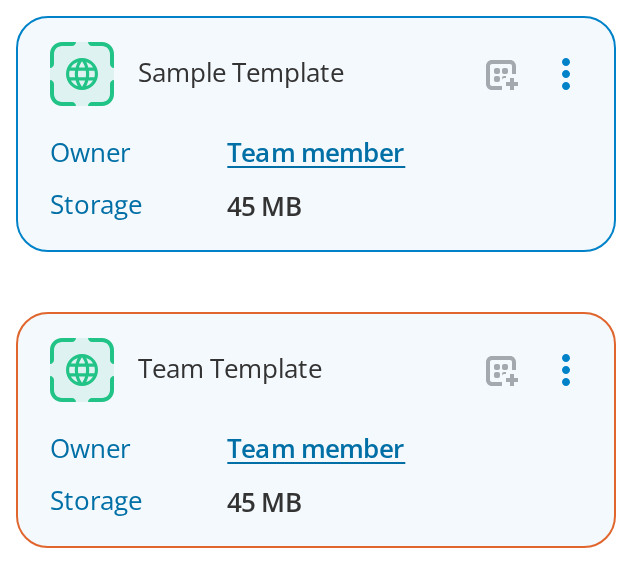

Css Customization

The variables are listed under CSS variables on this page.

Two instances:

• Sample Template — for every variable but the hotkey colour; hover it for --tile-hover-bg.
• Team Template — showHotkeyBorder, for --tile-hotkey-color.

Minimal example

import { TemplateTile } from "@onlyoffice/apps-ui-kit/components/tiles/template-tile";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Text } from "@onlyoffice/apps-ui-kit/components/text";

const template = {
  id: "t1",
  title: "Onboarding template",
  isTemplate: true,
  createdBy: { id: "u1", displayName: "Anna Petrova" },
  contextOptions: [],
};

export function SimpleTemplateTile() {
  return (
    <TemplateTile
      item={template}
      contextOptions={[]}
      columnCount={2}
      openUser={() => {}}
    >
      <TileContent>
        <Text truncate>{template.title}</Text>
      </TileContent>
    </TemplateTile>
  );
}

Props

Property	Type	Description
columnCount	number	Ignored. It is required by the type and read by nothing — the lower half is a two-column list, not a grid.
contextOptions	ContextMenuModel[]	The menu's entries. Required — but the three-dot button appears only when item also carries a contextOptions key of its own.
item	TemplateItem	The template this tile stands for. Its createdBy fills the owner line and its security.EditRoom decides whether the quota control is read-only.
openUser	() => void	Called when the owner's name is clicked. Required, even when the template has no createdBy and the name is never rendered.
badges?	ReactNode	Badges beside the content, in the upper half.
checked?	boolean	Whether the tile is selected.
children?	ReactNode	The tile's content. Only the first element is rendered, above the badges.
element?	ReactNode	The icon beside the checkbox. Without it neither the icon nor the checkbox is rendered at all.
getContextModel?	() => ContextMenuModel[]	Builds the menu shown on right-click. Without it the right-click menu never opens.
hideContextMenu?	() => void	Called when the menu closes.
indeterminate?	boolean	Draws the checkbox in its indeterminate state.
inProgress?	boolean	Replaces the icon and the checkbox with the kit's track loader.
isActive?	boolean	Whether the tile is the one being acted on, which keeps its hover background.
isBlockingOperation?	boolean	Turns the pointer off while an operation is running over the tile: hover, clicks and right-clicks stop reaching it. It does not change how the tile looks.
isEdit?	boolean	Renaming state: it removes the icon and the checkbox.
onSelect?	(checked: boolean, item: TemplateItem) => void	Called with the new checked state and the item. A checked item that has no string title is dropped before it reaches you.
showHotkeyBorder?	boolean	Draws the accent outline that marks the tile the keyboard is on.
showStorageInfo?	boolean	Adds the storage line to the lower half. The value beside it appears only when SpaceQuotaComponent is given as well.
SpaceQuotaComponent?	ComponentType<SpaceQuotaProps>	Renders the storage figure. It is handed the item, the literal type "room" and whether editing is allowed.
thumbnailClick?	(e: React.MouseEvent) => void	Ignored. It reaches the base tile, which does not read it either.
tileContextClick?	() => void	Called before the menu opens.

Recipes

With the storage figure

Both pieces are needed: showStorageInfo draws the caption, SpaceQuotaComponent draws the value beside it. Your component is handed the item, the literal type "room" and whether editing is allowed, which is taken from item.security.EditRoom.

import { TemplateTile } from "@onlyoffice/apps-ui-kit/components/tiles/template-tile";
import type { SpaceQuotaProps } from "@onlyoffice/apps-ui-kit/components/tiles/template-tile";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Text } from "@onlyoffice/apps-ui-kit/components/text";

const template = {
  id: "t1",
  title: "Onboarding template",
  createdBy: { id: "u1", displayName: "Anna Petrova" },
  security: { EditRoom: true },
  contextOptions: [],
};

function Quota({ isReadOnly, className }: SpaceQuotaProps) {
  return (
    <Text className={className} fontSize="13px">
      {isReadOnly ? "1.2 GB" : "1.2 GB of 10 GB"}
    </Text>
  );
}

export function TemplateTileWithQuota() {
  return (
    <TemplateTile
      item={template}
      contextOptions={[]}
      columnCount={2}
      showStorageInfo
      SpaceQuotaComponent={Quota}
      openUser={() => {}}
    >
      <TileContent>
        <Text truncate>{template.title}</Text>
      </TileContent>
    </TemplateTile>
  );
}

Selection

The checkbox appears beside element and reports through onSelect. A template whose title is not a string is dropped before the callback runs, so the item you get back is always a real template.

import { useState } from "react";

import { TemplateTile } from "@onlyoffice/apps-ui-kit/components/tiles/template-tile";
import { TileContent } from "@onlyoffice/apps-ui-kit/components/tiles/tile-content";
import { Text } from "@onlyoffice/apps-ui-kit/components/text";

const template = { id: "t1", title: "Onboarding template", contextOptions: [] };

export function SelectableTemplateTile() {
  const [checked, setChecked] = useState(false);

  return (
    <TemplateTile
      item={template}
      checked={checked}
      contextOptions={[]}
      columnCount={2}
      element={<span aria-hidden="true">🗂️</span>}
      onSelect={(next) => setChecked(next)}
      openUser={() => {}}
    >
      <TileContent>
        <Text truncate>{template.title}</Text>
      </TileContent>
    </TemplateTile>
  );
}

Behaviour the types don't state

• columnCount is required and does nothing. It is not read here and it is not read by the base tile either; the lower half is a two-column caption, not a grid. Pass any number.
• openUser is required even when there is no owner. The link it belongs to is rendered only when item.createdBy is set, so on a template without one the prop is never called.
• thumbnailClick is dead. It reaches the base tile, which declares it and reads it nowhere.
• There is no dataTestId prop, unlike every other tile in the family: the outer element keeps the base tile's default tile.
• The owner's name is a link with no href, so it is an <a> that is not focusable even though it is the one thing in the lower half that does something.
• onSelect filters the item on the way out. The base tile hands back its own TileItem; this component checks that it has a string title and drops the call otherwise.
• The captions are fixed keys. They are asked for as Owner and Storage in the kit's common namespace — not props, and not overridable.
• The three-dot button needs the flag on the item as well as the prop, and the right-click menu needs getContextModel — see BaseTile, which this component wraps.
• isBlockingOperation turns off the pointer and nothing else: hover, clicks and right-clicks stop reaching the tile, but it looks exactly like an idle one, so show the operation elsewhere.
• Only the first child is rendered, above the badges; the rest of children is dropped.

CSS variables

Variable	Default	Effect
--tile-sub-color	the theme's sub text	Colour of the two captions in the lower half and of the owner's name
--tile-bg	the theme's tile background	Background of the tile
--tile-hover-bg	the checked background	Background of the tile on hover, when checked and under isActive
--tile-border-style	the theme's room border	Border of the tile
--tile-radius	12px	Corner radius
--tile-icon-color	the theme's icon colour	Fill of the three-dot button
--tile-hotkey-color	the theme's hotkey colour	Border colour under showHotkeyBorder

All but --tile-sub-color are read by BaseTile, which this component wraps. Its --tile-padding and --tile-row-gap do not reach a template tile: this component's stylesheet fixes both at 12px, and the tile is capped at 128px high.

Accessibility

• The tile is a plain <div> with click and context-menu handlers: no role, no tabindex, no key handling. Only the checkbox and whatever you put in the content are focusable.
• The owner's name is not keyboard-reachable: it is a link without an href carrying a click handler. If opening the owner's profile matters, render your own button in the content instead.
• The captions and their values are separate elements with nothing tying them together, so a screen reader reads "Owner", "Storage", the name and the figure as four unrelated pieces of text.
• Nothing here sets aria-busy or aria-disabled. inProgress changes only the appearance; isBlockingOperation turns off the pointer but not the keyboard, so a busy template's checkbox can still be toggled from it.

Test ids

Element	data-testid
Outer element	tile

It cannot be changed from here.

Related

• Tiles — the family this belongs to.
• BaseTile — the shell this is built on.
• RoomTile — the same shell with tags instead of captions.
